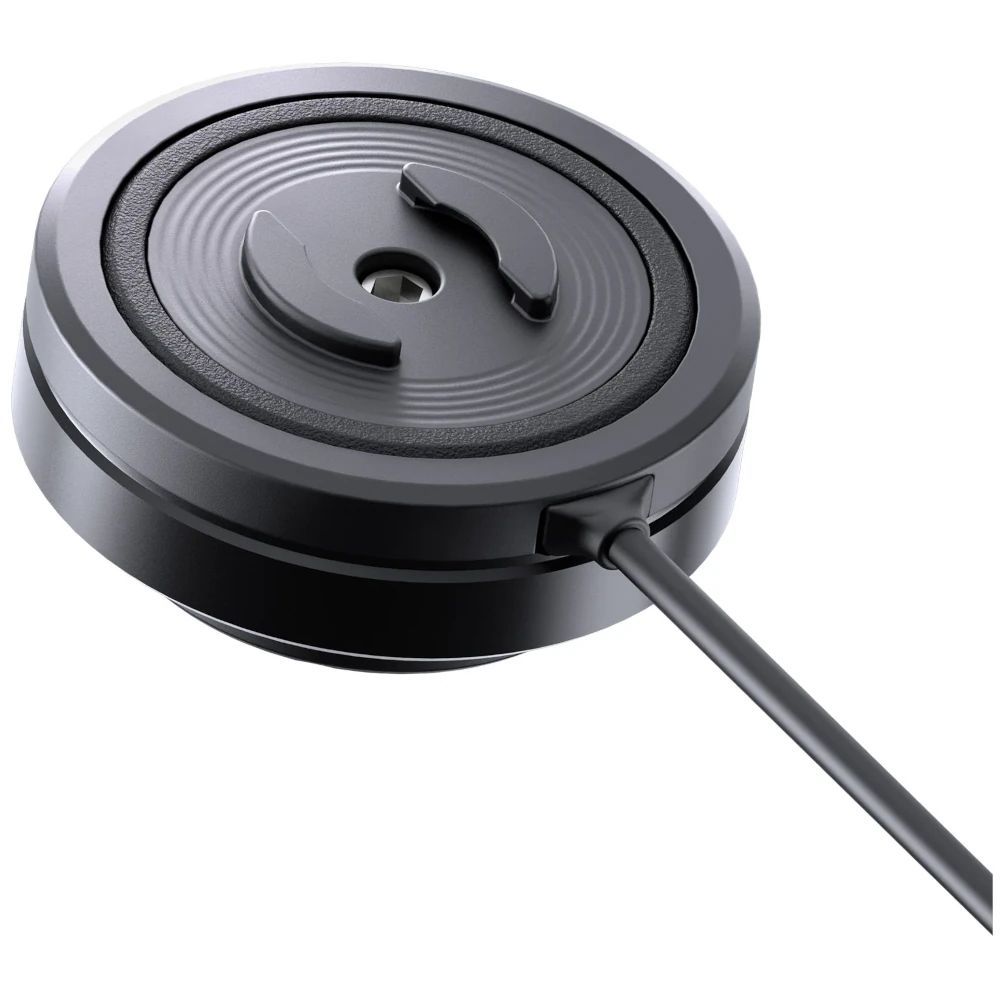

SP Connect – Charging Anti Vibration Module

Protect sensitive smartphone components and charge your device wirelessly while riding with the SP Connect Charging Anti Vibration Module. Designed for compatible motorbike and bicycle mounts, it combines three-dimensional vibration dampening with convenient inductive charging in a single premium accessory.

A specially developed elastomer inlay can reduce vibrations from the engine by up to 60%, helping provide additional protection for sensitive components such as mechanical camera stabilisation systems. The CNC-machined aircraft-grade aluminium construction delivers strength and durability, while the weatherproof design is suitable for riding in changing conditions.

Mag-Align guides a compatible SP Connect Phone Case into position before the patented Twist-to-Lock mechanism secures it with a 90-degree turn.

Key Features

• Combines vibration reduction and inductive wireless charging

• Helps reduce engine-generated vibrations by up to 60%

• Three-dimensional dampening through a specially developed elastomer inlay

• Provides additional protection for sensitive smartphone components

• Precision CNC-machined from aircraft-grade aluminium

• 100% weatherproof construction

• Mag-Align magnetic guidance for easier positioning

• Patented Twist-to-Lock mechanical connection

• Secure attachment with a 90-degree turn

• Adjustable through 360 degrees

• Supports portrait and landscape phone positioning

• Can be powered through a compatible USB or vehicle electrical connection

• Designed for use with compatible SP Connect Phone Cases

Technical Specifications

Specification	Details
Brand	SP Connect
Product type	Wireless charger and vibration-dampening module
Vibration reduction	Up to 60%
Dampening system	Three-dimensional elastomer inlay
Charging method	Inductive wireless charging
Phone attachment	Mag-Align plus Twist-to-Lock
Main material	CNC-machined aircraft-grade aluminium
Weather resistance	100% weatherproof
Adjustment	360 degrees
Diameter	60 mm
Weight	Approximately 104 g
Power connection	USB-C
Included cable	USB-C to USB-C
Cable standard	USB Power Delivery
Colour	Black
SKU	52808

Mount Compatibility

The Charging Anti Vibration Module replaces the mounting head on a compatible SP Connect mount. The mount must provide the correct mounting point and sufficient clearance for the module.

Compatibility may vary depending on the mount model, generation and installed head. Confirm compatibility with the intended SP Connect mount before ordering.

Phone Compatibility

The module is designed to work with:

• A compatible SP Connect Phone Case

• A smartphone that supports inductive wireless charging

Correct operation is not guaranteed with the SP Connect Universal Interface or Universal Phone Case. Unsupported third-party cases may also affect charging alignment, magnetic attachment and overall stability.

Power Options

The module does not contain an internal battery and requires an external power source. Depending on the installation, it may be powered through:

• A compatible USB-C or Power Delivery outlet

• A suitable power bank

• An SP Connect 12V DC Cable connected to a motorbike

• A suitable e-bike power connection and compatible cable

Vehicle and e-bike power cables are sold separately.

What’s Included

• 1 × Charging Anti Vibration Module

• 1 × M5 × 16 mm screw

• 1 × M5 × 21 mm screw

• 1 × USB-C to USB-C cable with USB Power Delivery support

Important Note

This product is a charger and vibration-dampening module, not a power bank. It contains no internal battery. The smartphone, phone case, mounting base, 12V DC Cable and external power source are not included.

The module can reduce vibrations by up to 60%, but it cannot eliminate every vibration or guarantee against smartphone or camera damage. Stop using the setup if excessive movement or camera-related issues occur.

For direct connection to a motorbike battery, use a compatible voltage-converting cable and connect it to an ignition-switched circuit to help prevent battery drain. Electrical installation should be completed by a suitably qualified person.

On motorcycles with keyless ignition, start the ignition before attaching the smartphone, as overlapping frequency channels may interfere with the keyless system.
