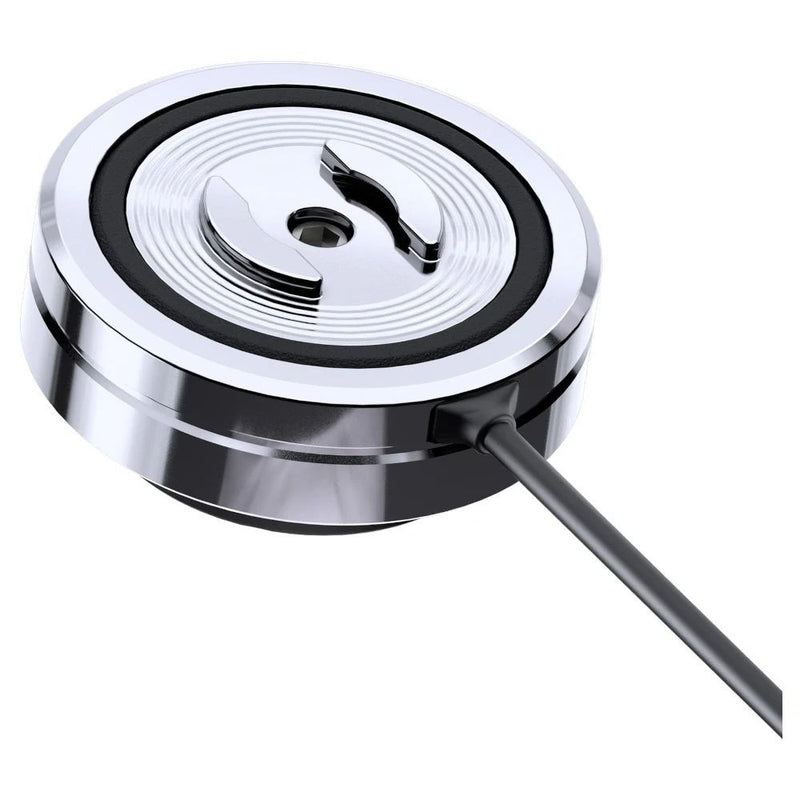

SP Connect – Charging Anti Vibration Module Chrome

Protect sensitive smartphone components, charge your phone wirelessly and complement your motorbike with a premium chrome finish using the SP Connect Charging Anti Vibration Module Chrome.

The specially developed three-dimensional elastomer inlay can reduce engine-generated vibrations by up to 60%, helping provide additional protection for sensitive internal components such as mechanical camera stabilisation systems. At the same time, the integrated inductive charger keeps a compatible smartphone powered while you ride.

Precision CNC-machined from aircraft-grade aluminium, the module provides a strong, durable and weatherproof addition to a compatible SP Connect mounting setup.

Key Features

• Combines vibration reduction with inductive wireless charging

• Helps reduce engine-generated vibrations by up to 60%

• Three-dimensional dampening through a specialised elastomer inlay

• Provides additional protection for sensitive smartphone components

• Precision CNC-machined from aircraft-grade aluminium

• Premium chrome finish

• 100% weatherproof construction

• Secure SP Connect Twist-to-Lock connection

• Attaches a compatible phone case with a 90-degree turn

• Adjustable through 360 degrees

• Supports portrait and landscape phone positioning

• MagSafe-compatible charging system

• Designed for compatible SP Connect Phone Cases

• Includes USB-A to USB-C power cable

Technical Specifications

Specification	Details
Brand	SP Connect
Product type	Wireless charger and vibration-dampening module
Vibration reduction	Up to 60%
Dampening system	Three-dimensional elastomer inlay
Charging method	Inductive wireless charging
Phone connection	SP Connect Twist-to-Lock
Main material	CNC-machined aircraft-grade aluminium
Weather resistance	100% weatherproof
Adjustment	360 degrees
Diameter	60 mm
Weight	Approximately 104 g
Power connection	USB-C at module
Included cable	USB-A to USB-C
Cable standard	QC 3.0
Finish	Chrome
SKU	52828

Mount Compatibility

The Charging Anti Vibration Module Chrome replaces the mounting head on a compatible SP Connect mount. The existing mount must have the correct attachment point and sufficient clearance for installation.

Compatibility varies by mount model and generation. Confirm that the intended SP Connect mount accepts this module before ordering.

Phone Compatibility

The module is designed to work with:

• A compatible SP Connect Phone Case

• A smartphone that supports inductive wireless charging

Correct operation is not guaranteed with the SP Connect Universal Interface or Universal Phone Case. Unsupported cases may affect charging alignment, mechanical attachment and overall stability.

Power Options

This module does not contain an internal battery and must be connected to a suitable external power source. Depending on the installation, it may be powered using:

• A compatible USB-A QC 3.0 outlet

• A suitable power bank

• An appropriate vehicle electrical connection

• An SP Connect 12V DC Cable for direct motorbike-battery installation

The 12V DC Cable and other optional power accessories are sold separately.

What’s Included

• 1 × Charging Anti Vibration Module Chrome

• 1 × M5 × 16 mm screw

• 1 × M5 × 21 mm screw

• 1 × USB-A to USB-C cable with QC 3.0 support

Important Note

This product is a charger and vibration-dampening module, not a power bank. It does not contain an integrated battery. The smartphone, phone case, mounting base, 12V DC Cable and external power source are not included.

The module can reduce vibrations by up to 60%, but it cannot eliminate every vibration or guarantee against smartphone or camera damage. Stop using the setup if excessive movement or camera-related problems occur.

For direct connection to a motorbike battery, use a suitable voltage-converting cable connected to an ignition-switched circuit to help prevent battery drain. Electrical installation should be completed by a suitably qualified person.

On motorcycles with keyless ignition, start the ignition before attaching the smartphone, as overlapping frequency channels may interfere with the keyless system.
