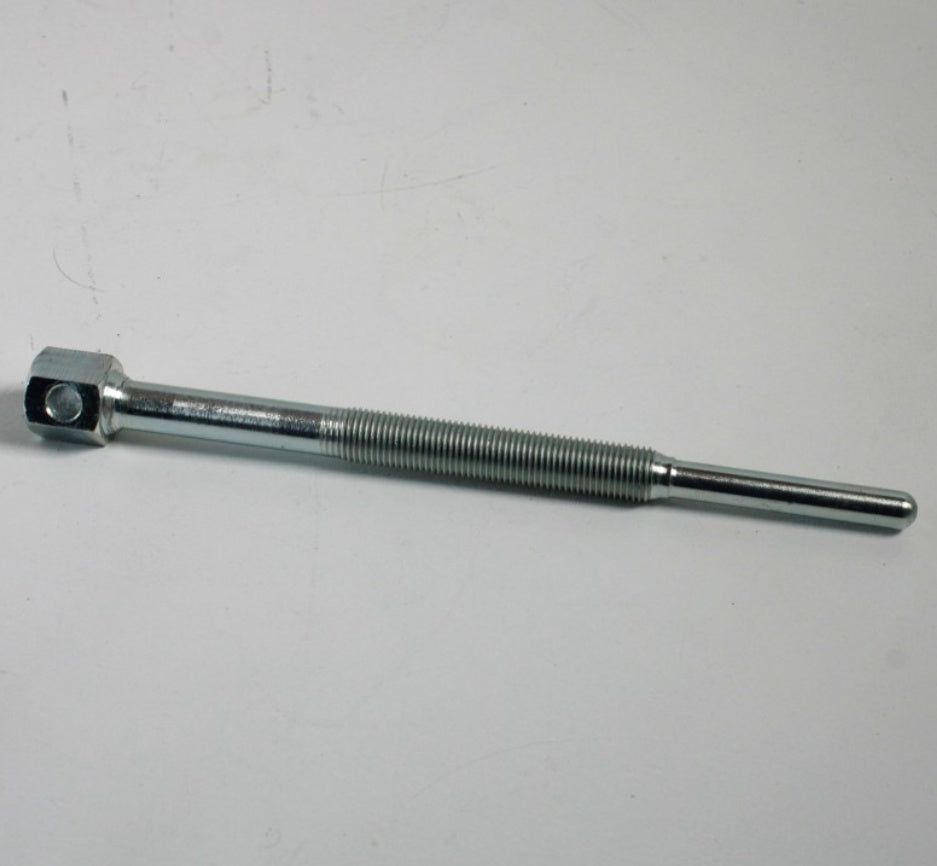

Segway CVT Primary Clutch Puller Tool - SX10 / UT10 / UT10 CREW / UT6

Compatible Models

• Fugleman UT6 (All variants): Your 570cc UTV.

• Fugleman UT10 / UT10 Crew: The 1000cc twin-cylinder UTV models.

• Villain SX10 (64" and 72" variants): The sport SSV (Side-by-Side) models.

• Villain SX10 E / X / WX: All 1000cc sport models.

Key Compatibility Note

This tool is specifically designed for the CVTech-based clutches found in the UTV and SSV lines.

• Snarler AT5 and AT6: These ATVs often use a different puller part number (E01GZ0000013). While the thread pitch is sometimes the same, the length of the tool is different. Using the UT6 puller on a Snarler can occasionally bottom out too early or not reach the crankshaft depending on the specific clutch housing depth.

• 2025+ Updates: If you ever upgrade to the newest SX20T or hybrid models, always double-check the manual, as Segway has begun updating some hardware to accommodate higher torque loads.

Why this is a "Multi-Model" Tool

The reason it works for the UT6, UT10, and Villain is that Segway standardized the crankshaft taper and the CVTech Trailbloc primary clutch across their entire 1000cc and 570cc UTV platforms.
