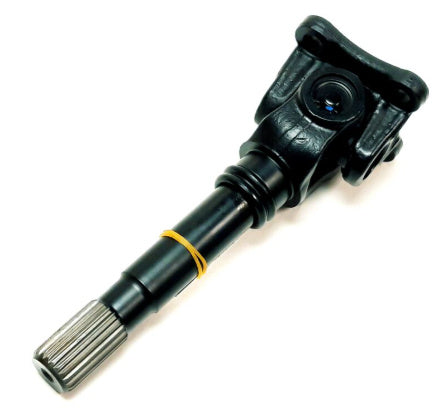

Rear Drive Tail Shaft (Short) - AT5S

This SKU (A10-P220000-000-00) is the official factory part number for the Rear Center Drive Shaft / Prop Shaft (Short Version).

Unlike the CV wheel axles we discussed earlier, this is the main central shaft that runs down the middle of the quad bike to link your engine/transmission to the rear differential.

⚠️ Crucial Wheelbase Compatibility

• Fits the AT5 S (Short Wheelbase): Yes. This is a direct factory replacement for the short-frame model.

• Fits the AT5 L (Long Wheelbase): No. Because the AT5 L has a stretched frame, it requires a physically longer center prop shaft to reach the rear differential. The long wheelbase version uses a different SKU: A11-P220000-000-00.

???? Relevance to Your Issue

If your diagnostic test confirmed that the center prop shaft is spinning but failing to rotate the internal differential gears, this is the exact replacement part you need to swap out to fix those stripped external splines on your short-frame AT5 S.
