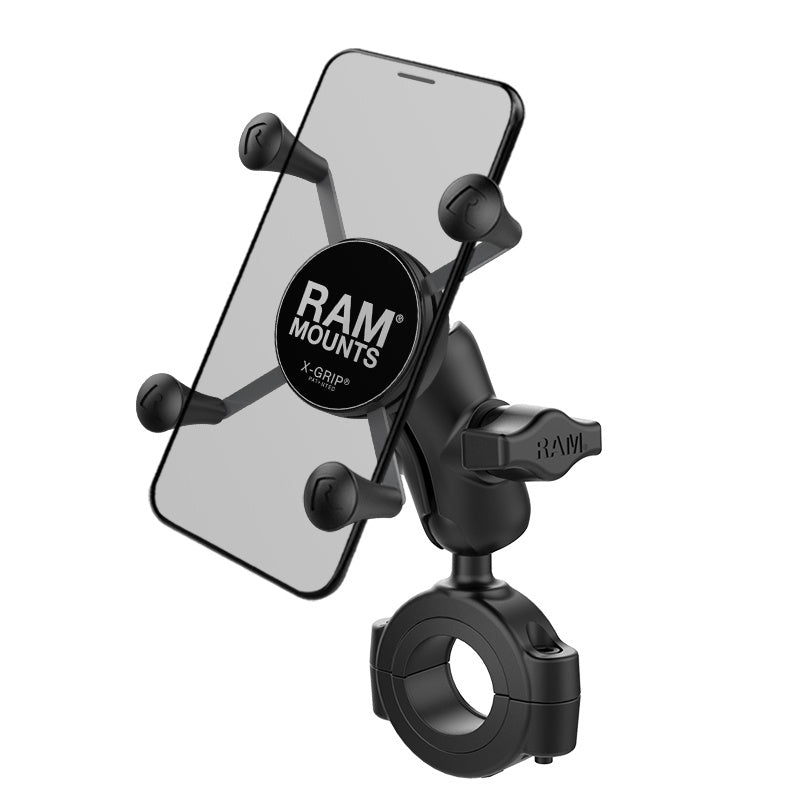

Ram Mounts - X-Grip UN7 with Large Torque Rail and Short Arm

General Description

The RAM Mounts X-Grip UN7 with Large Torque Rail Base and Short Arm is a rugged and versatile phone mounting solution designed for motorcycles, bicycles, ATVs and other vehicles with compatible handlebars or rails.

Featuring the popular spring-loaded RAM X-Grip holder, this mount securely holds your smartphone while keeping the screen and controls easily accessible. The RAM Torque Large Rail Base attaches firmly to round rails measuring from 1⅛" to 1½" in diameter, while the short double socket arm provides a compact, low-profile installation with excellent stability.

Built around RAM Mounts’ B Size 1" ball-and-socket system, the mount offers highly adjustable positioning so you can achieve an optimal viewing angle. Its marine-grade aluminium, high-strength composite and stainless-steel construction makes it suitable for demanding environments and everyday outdoor use.



Key Features

• Universal X-Grip Phone Holder – Spring-loaded four-leg design securely holds a wide range of smartphones without blocking the screen.

• Large Torque Rail Base – Designed for round handlebars and rails measuring from 1⅛" to 1½" in diameter.

• Short Arm Design – Provides a compact mounting profile with excellent stability and reduced vibration.

• Highly Adjustable – RAM’s ball-and-socket system allows easy adjustment to achieve your preferred viewing angle.

• B Size 1" Ball System – Compatible with a wide range of RAM Mounts B Size components and accessories.

• Built for High-Vibration Environments – Nylon-insert lock nuts help prevent the mount from loosening during demanding use.

• Protective Rail Inserts – Included sizing inserts provide a secure fit while helping protect the mounting surface.

• Optional Device Tether Included – Provides additional security for your phone during rugged or outdoor use.

• Durable Construction – Manufactured from marine-grade aluminium, high-strength composite and stainless steel.

• Ideal for Multiple Applications – Suitable for motorcycles, bicycles, ATVs and other compatible rail-mounted applications.

Technical Specifications

Specification	Details
Brand	RAM Mounts
Product Range	RAM X-Grip / RAM Torque
Part Number	RAM-B-408-112-15-A-UN7U
Holder Type	Universal X-Grip Phone Holder
Phone Width Range	1.875" – 3.25"
Maximum Phone Depth	0.875"
Rail Clamp Range	1.125" – 1.5" diameter
Arm Type	Short Double Socket Arm
Socket-to-Socket Length	1.75"
Overall Short Arm Length	2.42"
Ball Size	B Size – 1" diameter
Weight Capacity – Standard Use	Up to 2 lb (0.91 kg)
Weight Capacity – Heavy-Duty Use	Up to 1 lb (0.45 kg)
Materials	Marine-grade aluminium, high-strength composite and stainless steel
Mounting Style	Handlebar / Round Rail
Adjustment	Ball-and-socket adjustable positioning
Device Tether	Included
Product Weight	Approx. 0.71 lb (0.32 kg)
Colour	Black
Packaging	Poly Bag

What’s Included

• RAM X-Grip Universal Phone Holder with B Size Ball

• RAM B Size Short Double Socket Arm

• RAM Torque Large Rail Base

• Optional Device Tether

• Rubber Cap Adhesive

• Mounting Screws and Nyloc Nuts

• Split Reducing Bushings

• Rubber Adhesive Strip

• Hex Key Wrench
