Quad Lock - 360 Waterproof Wireless Charging Head - 12V

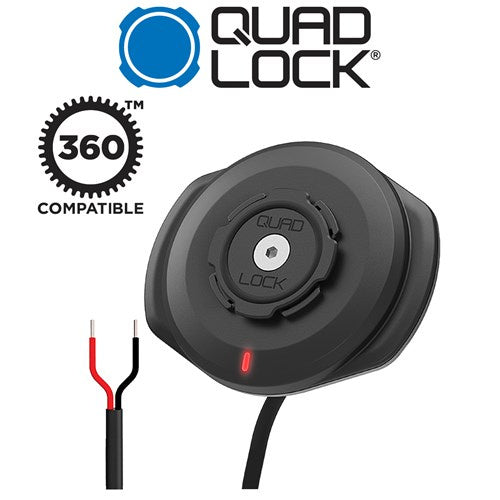

Quad Lock – 360 12V–24V Waterproof Wireless Charging Head

GENERAL DESCRIPTION

Keep your compatible smartphone securely mounted and powered in demanding outdoor environments with the Quad Lock 360 12V–24V Waterproof Wireless Charging Head. Designed for hardwired installation on motorcycles, boats and other compatible vehicles, it connects directly to a switched 12V or 24V power supply.

The patented dual-stage locking mechanism keeps a compatible Quad Lock Case firmly attached, while Qi wireless charging delivers up to 15W depending on the connected phone. Its IP67-rated enclosure, aluminium rear housing and durable glass-filled nylon front make it suitable for wet and exposed conditions.

KEY FEATURES

• Hardwired operation from a 12V or 24V power supply

• Qi wireless charging output up to 15W

• Supports 5W, 7.5W, 10W and 15W charging profiles

• iPhone wireless charging output up to 7.5W

• Patented dual-stage locking mechanism

• Securely holds a compatible Quad Lock Case

• IP67-rated water-resistant construction

• Aluminium rear housing assists with heat management

• Tough glass-filled nylon front housing

• Integrated 1.5-metre hardwired cable with fly leads

• Red LED provides charging-status indication

• Supports portrait and landscape phone positioning

• Compatible with Quad Lock 360 and Marine mounts

• Compatible with suitable Quad Lock indexed motorcycle mounts

• Works with the Quad Lock Vibration Dampener

• Suitable for motorcycles, marine applications and compatible vehicles

• Designed for professional hardwired installation

TECHNICAL SPECIFICATIONS

Specification	Details
Brand	Quad Lock
Series	Quad Lock 360
Product Type	Hardwired waterproof wireless charging head
Input Voltage	12V or 24V DC
Wireless Charging Standard	Qi
Charging Outputs	5W / 7.5W / 10W / 15W
Maximum iPhone Output	7.5W
Water Resistance	IP67
Locking System	Quad Lock dual-stage twist lock
Rear Housing	Aluminium
Front Housing	Glass-filled nylon
Power Connection	Hardwired fly leads
Cable Length	1.5 m
Status Indicator	Red LED
Phone Orientation	Portrait or landscape
Mount Compatibility	Quad Lock 360, Marine and compatible indexed mounts
Vibration Dampener Compatibility	Yes
Compatible Phones	Qi-enabled phones fitted with a compatible Quad Lock Case
Mounting Screw	M5 × 35 mm countersunk hex socket
Weight	Approximately 232 g
Model Number	QL-5764

PACKAGE INCLUDES

• 1 × Quad Lock 12V–24V Waterproof Wireless Charging Head

• 1 × Integrated 1.5 m hardwired cable with fly leads

• 2 × Cable-grommet plugs

• 1 × M5 × 35 mm countersunk hex socket screw

• 1 × 3 mm hex key

• 5 × 5 mm × 200 mm nylon cable ties

PLEASE NOTE

A compatible Quad Lock mount, Quad Lock Case and Qi-enabled smartphone are required and sold separately. This charging head is not recommended for use with a Quad Lock Universal Adaptor.

The charger must be connected to an ignition-switched positive supply or an appropriate isolator switch using the correct inline 3A fuse. Do not connect it directly to a permanent battery supply, as it may continue drawing power and discharge the battery.

Professional installation is strongly recommended. Wireless charging output depends on the phone model, temperature, battery level, active applications and environmental conditions. The IP67 rating does not mean the product should be deliberately or continuously submerged.
