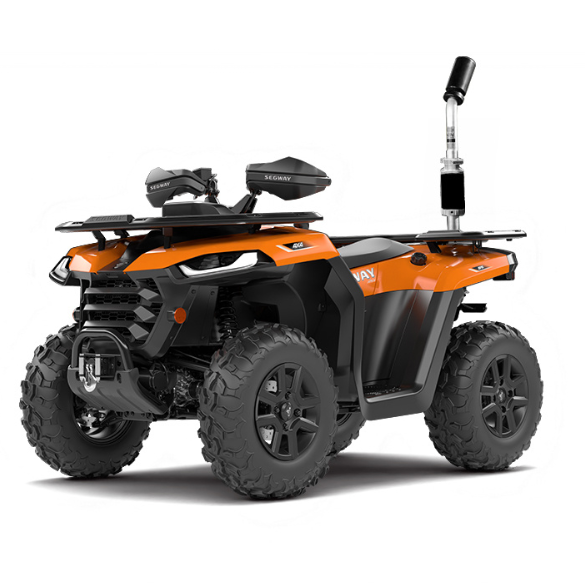

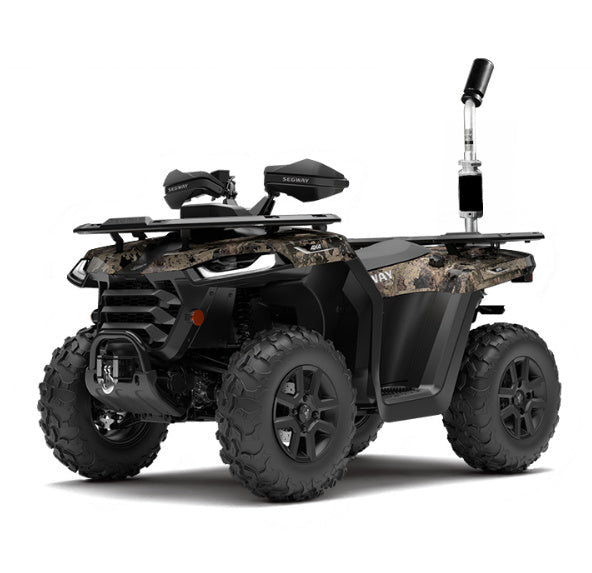

Segway - Snarler AT5S Quadpro

DYNAMIC POWERTRAIN

499CC liquid cooled, single cylinder, 4-stroke, DOHC engine, delivers max 39HP and 44Nm of torque. With the addition of a Bosch electronic fuel injection system, the powertrain adapts to both high and low temperatures, including high-altitude environments.

RUGGED & CAPABLE ATV

The front suspension is dual A-Arm with 7.1 in./ 180mm travel. The rear suspension has 7.9 in./210mm of travel. With 9.8 in./250mm ground clearance, the Segway AT5 L Quad Pro easily clears obstacles and makes your ride enjoyable and comfortable.

SMART MOVING & SMART FUN

The AT6 features a brand-new Smart Commanding System (SCS), consisting of our Smart Moving App (SMA) and Smart Commanding Screen (SCC), It uses cutting-edge 10V to help you blaze a trail and explore the wild.



SMART MOVING APP (SMA)

• Customise your Powersport settings

• Add an SOS emergency contact

• In case of collision or rollover, the app automatically sends an SMS with your location to the SOS contact

• Retrieve real-time vehicle data

• Wireless location and wireless communications

SMART COMMANDING SYSTEM (SCS)
Segway Powersport's Cloud Platform integrates:

• Internet of Things (IoT)

• Big Data

• APP Operation Management System

• User Management System

• Cloud Communication

It enhances the user experience of intelligent products by providing highly efficient and secure data.​

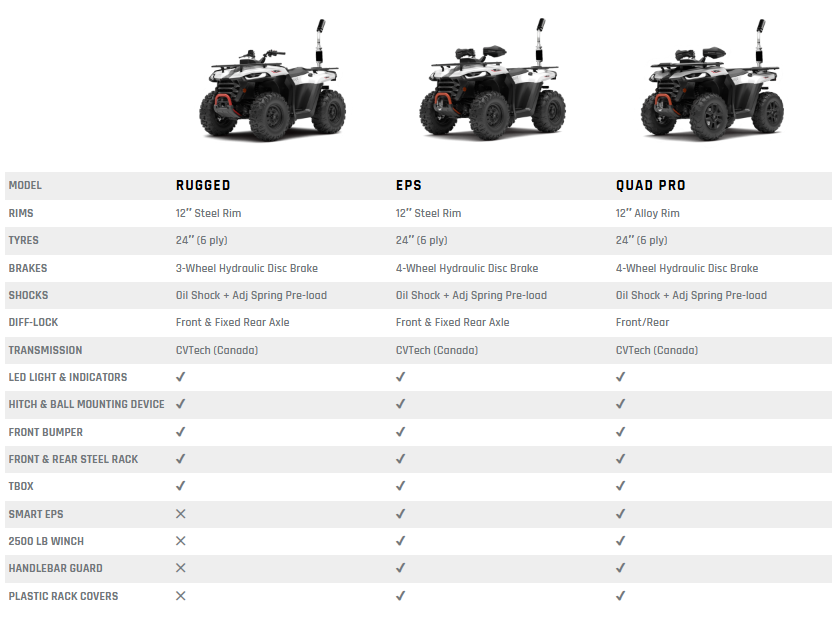

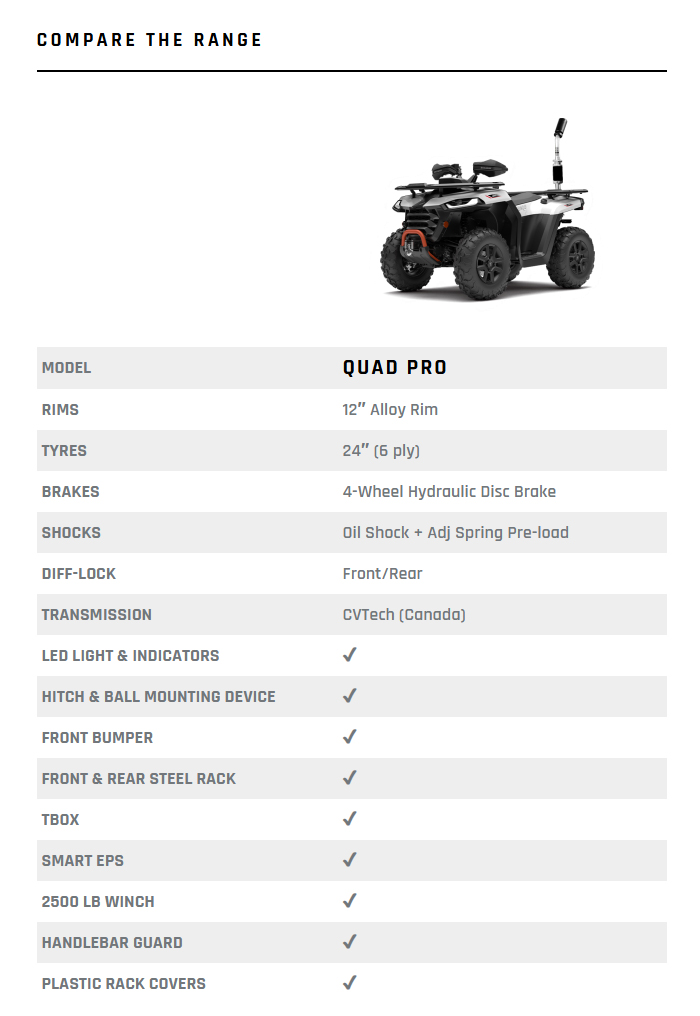

Compare the range

Powertrain & Drivetrain

Powertrain	Petrol Engine
Displacement	499cc, 4-Stroke Single-Cylinder, DOHC Engine
Max Torque	44 Nm
Horsepower	39 hp
0-60km/h	4.6 Seconds
Fuel Supply	Bosch Electronic Fuel Injection
Drive System Type	2WD/4WD/4WD lock
Differential Lock	Front with Fixed Rear Axle
Transmission	CVTech (Canada)
Cooling System	Dual Oil Column Piston Cooling System + Liquid & Oil Heat Exchanger Cooling System



Suspension System

Frame	High-strength chromium-molybdenum steel frame
Rear Suspension & Travel	Dual A-Arm; Rear Travel: 7.9″
Front Suspension & Travel	Dual A-Arm; Front Travel: 7.1″
Shock	Oil Shock with Adjustable Spring Pre-load
Tyres	Front Tyres 6 Ply 24 x 8-12 Rear Tyres 24 x 10-12
Wheels	Standard Steel (12 inch)
Brakes	3-Wheel Hydraulic Disc Brake



Dimensions & Capacities

Towing Capacity	612 kg (1,350 lb) *Trailer with Braking System
Payload Capacity	185 kg (407 lb)
Front/Rear Rack Capacity	Front/Rear: 40 kg/60 kg (88 lb/132 lb)
Fuel Capacity	19 litre (5.0 gal)
Curb Weight	355 kg
Wheelbase	130 cm (51.2″)
Ground Clearance	25 cm (9.8″)
Vehicle Size (Length/Width/Height）	216 x 118 x 123 cm (85 x 46.5 x 48.4″)
