PTL-400 Coaxial Cable N Male to SMA Male 15m

PTL-400 Coaxial Cable N Male to SMA Male – 15 m

GENERAL DESCRIPTION

The Powertec PTL-400 Coaxial Cable is a high-performance, low-loss RF cable designed for reliable signal transmission in wireless communication and antenna installations. Its generous 15-metre length makes it ideal for connecting antennas to routers, modems, signal boosters and other compatible RF equipment.

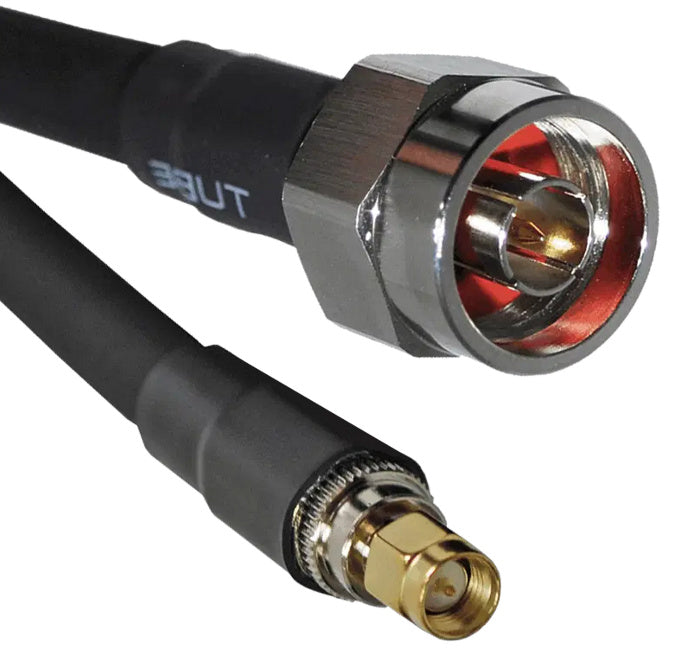

Factory-terminated with a straight N Male connector at one end and a straight SMA Male connector at the other, this cable provides a secure and dependable connection. The durable, UV-stable outer jacket supports indoor and outdoor installations, while its excellent shielding helps minimise interference and preserve signal quality.

KEY FEATURES

• High-performance PTL-400 low-loss coaxial cable
• 15-metre cable length
• N Male to SMA Male connector configuration
• Factory-terminated connectors for reliable performance
• Supports RF frequencies from DC to 6 GHz
• Suitable for most Sub-6 GHz wireless transmissions
• 50-ohm impedance
• Shielding effectiveness greater than 90 dB
• Durable, UV-stable polyethylene outer jacket
• Low Smoke Zero Halogen flame-retardant construction
• Suitable for antenna, cellular, Wi-Fi and RF communication systems
• Designed for indoor and outdoor installations

TECHNICAL SPECIFICATIONS

Specification	Details
Brand	Powertec
Cable Series	PTL-400
Cable Type	L-400 class low-loss coaxial cable
Length	15 m
Connector 1	N Male – straight
Connector 2	SMA Male – straight
Connector Mounting	Free-hanging
Frequency Range	DC to 6 GHz
Impedance	50 Ω
Outer Diameter	10.29 mm
Shielding Effectiveness	Greater than 90 dB
Velocity of Propagation	85%
Capacitance	78 pF/m
Minimum Static Bend Radius	25.4 mm
Minimum Dynamic Bend Radius	101.6 mm
Operating Temperature	–40°C to 85°C
Connector Mating Cycles	Greater than 500
Cable Colour	Black
Approximate Assembly Weight	1.55 kg
SKU	ACC-PT-00340
Manufacturer Part Number	CA-P400-N1SA1.15
Barcode	9337692002137
Compliance	ISO 9001 and RoHS

TYPICAL APPLICATIONS

• External antenna installations
• Cellular routers and modems
• Mobile signal boosters
• Wi-Fi and wireless communication systems
• IoT, telemetry and machine-to-machine equipment
• Other compatible RF devices with N Female and SMA Female connections

PLEASE NOTE

Check the connector type on your equipment before purchasing. This cable has an N Male connector at one end and an SMA Male connector at the other.
