Powertec 4G Omni High Gain Antenna, 698 to 2700 MHz, N Female, PTL-240 Coaxial Cable N Male to SMA Male, 10m

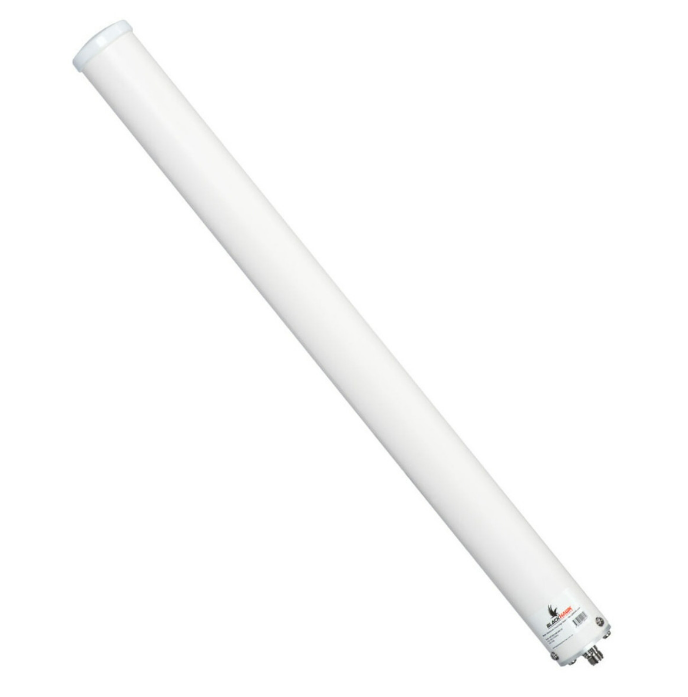

Powertec 4G Omni High Gain Antenna, 698–2700 MHz, N Female with 10 m PTL-240 Cable

GENERAL DESCRIPTION

Improve mobile signal reception with the Powertec 4G Omni High Gain Antenna and 10-metre PTL-240 coaxial cable bundle. Designed for fixed locations and moving equipment, the omnidirectional antenna provides 360-degree coverage without requiring precise alignment towards a mobile tower.

Its wideband 698–2700 MHz coverage makes it suitable for compatible 3G and 4G mobile networks. The rugged UV-stable PVC construction, stainless steel mounting hardware and low-loss cable make this kit ideal for rural properties, workshops, commercial buildings, machinery and compatible CEL-FI repeater installations.

KEY FEATURES

• Wideband operation from 698 to 2700 MHz

• Omnidirectional 360-degree horizontal coverage

• Up to 6.5 dBi peak antenna gain

• Suitable for compatible 3G and 4G mobile applications

• Single-port 1×1 SISO antenna configuration

• Vertical polarisation

• Durable UV-stable PVC construction

• Stainless steel pole-mount bracket included

• Operating temperature range from −40°C to 65°C

• Includes a 10 m low-loss PTL-240 coaxial cable

• N Male to SMA Male cable connectors

• Suitable for compatible CEL-FI repeaters and mobile equipment

TECHNICAL SPECIFICATIONS – ANTENNA

Specification	Details
Product type	Wideband high-gain omni antenna
Frequency range	698–2700 MHz
Gain at 698–890 MHz	5 dBi
Gain at 890–960 MHz	4.5 dBi
Gain at 1695–2200 MHz	6 dBi
Gain at 2200–2700 MHz	6.5 dBi
Antenna design	Collinear omnidirectional
Configuration	1×1 SISO
Polarisation	Vertical
Azimuth beamwidth	360°
Vertical beamwidth	15°–40°, frequency dependent
VSWR	Less than 2.3:1
Input impedance	50 Ω
Maximum input power	100 W
Antenna connector	N Female
Dimensions	680 × 63 mm
Weight	1.9 kg
Material	UV-stable PVC and stainless steel
Mounting	Pole clamp, 25–52 mm diameter
Operating temperature	−40°C to 65°C
Bundle SKU	ANT-BH-OM-204-10
Manufacturer part number	VCOL-6927-6.N2
Barcode	9337692000454

TECHNICAL SPECIFICATIONS – CABLE

Specification	Details
Cable type	PTL-240 low-loss coaxial cable
Length	10 m
Connector 1	N Male
Connector 2	SMA Male
Operating frequency	DC to 6 GHz
Impedance	50 Ω
Outer diameter	6.10 mm
Shielding effectiveness	Greater than 90 dB
Outer jacket	UV-stable polyethylene
Static minimum bend radius	19.1 mm
Dynamic minimum bend radius	63.5 mm
Operating temperature	−40°C to 85°C

PACKAGE INCLUDES

• 1 × Powertec 4G Omni High Gain Antenna

• 1 × 10 m PTL-240 Coaxial Cable, N Male to SMA Male

• 1 × Stainless Steel L-Bracket

• Pole-mounting hardware

PLEASE NOTE

This is a single-port SISO antenna, not a MIMO antenna. Confirm that your modem, router or repeater supports the 698–2700 MHz frequency range and has a compatible SMA Female connection before ordering. An additional adapter may be required for devices fitted with a different connector. Professional installation is recommended for optimal antenna placement and performance.
