PGYTECH - Action Camera Suction Cup Mount



PGYTECH – CapLock Action Camera Suction Cup Mount

GENERAL DESCRIPTION

Capture dynamic footage from vehicles, windows and other smooth surfaces with the PGYTECH CapLock Action Camera Suction Cup Mount. Its strong vacuum suction base provides a secure hold, while the dual-ball articulating arm offers 360-degree adjustment for positioning the camera at the required angle.

The CapLock quick-release system allows a compatible camera to be installed or removed quickly. Included three-prong and 1/4"-20 adaptors provide broad compatibility with action cameras, compact cameras, lights and other lightweight recording equipment.

KEY FEATURES

• Strong vacuum suction cup for smooth, non-porous surfaces

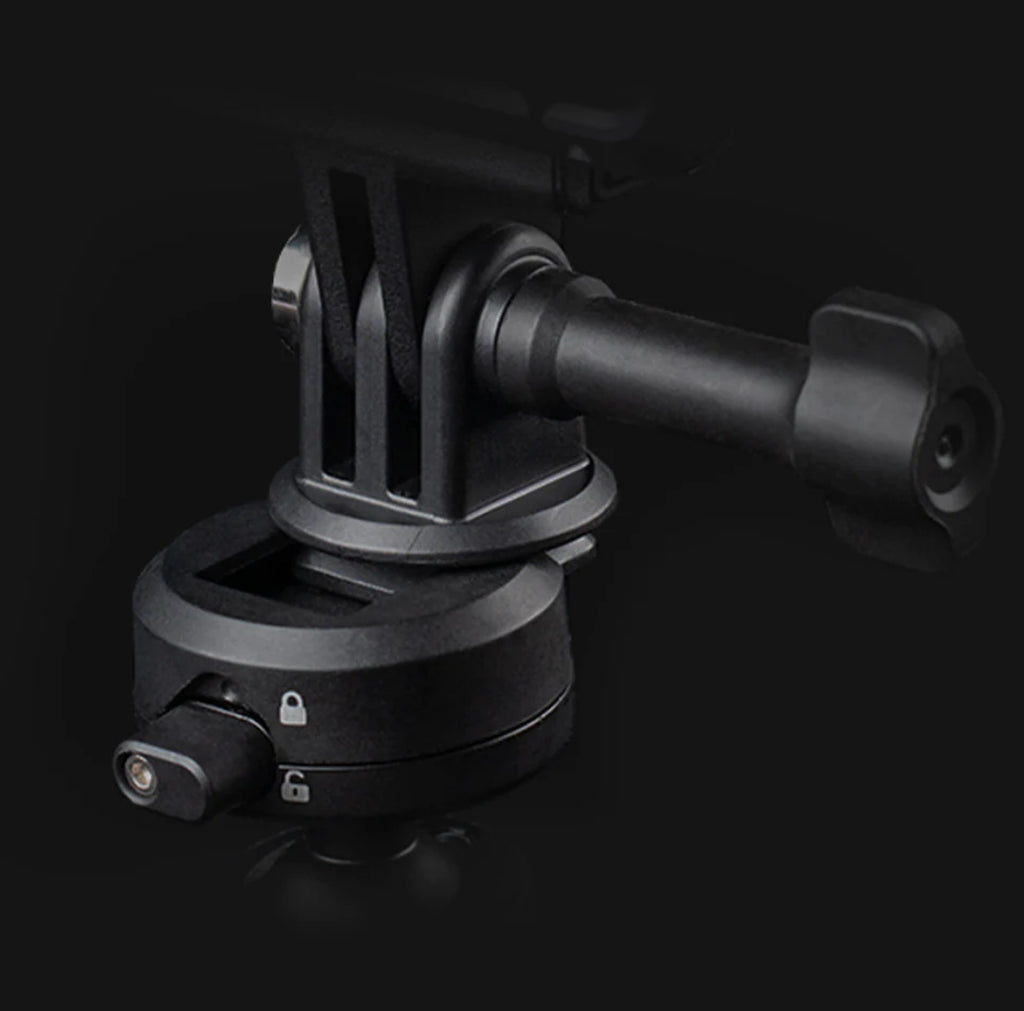

• CapLock quick-release mounting system

• Dual-lock design helps prevent accidental release

• Dual-ball articulating arm

• Full 360-degree positioning

• Single control knob locks both ball joints

• Supports equipment weighing up to 300 g

• Includes a standard three-prong action-camera adaptor

• Includes a 1/4"-20 threaded adaptor

• Compatible with selected GoPro, DJI and Insta360 cameras

• Suitable for glass, smooth metal and polished surfaces

• Aluminium-alloy arm provides strength and stability

• Silicone suction cup provides a secure seal

• Compact folding design for storage and transport

• Suitable for vehicle-mounted and stationary filming

TECHNICAL SPECIFICATIONS

Specification	Details
Brand	PGYTECH
Series	CapLock
Product Type	Action-camera suction cup mount
Model Number	P-GM-223
Mounting Surface	Smooth, flat and non-porous surfaces
Maximum Load	300 g
Camera Connection	Three-prong action-camera mount / 1/4"-20 thread
Adjustment	360° dual-ball rotation
Locking System	CapLock quick release with dual lock
Materials	PA, TPU, aluminium alloy and silicone
Dimensions	155 × 85 × 85 mm
Net Weight	Approximately 170.5 g
Colour	Black

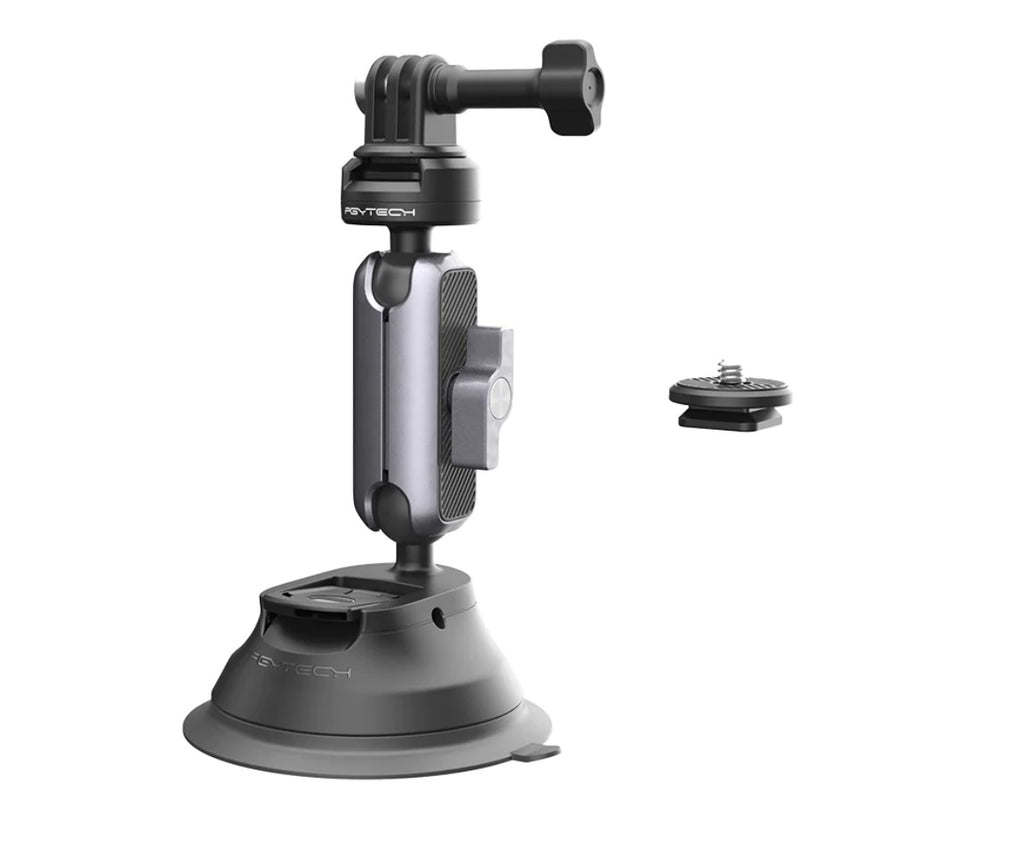

PACKAGE INCLUDES

• 1 × PGYTECH CapLock suction cup mount

• 1 × Three-prong action-camera adaptor

• 1 × Thumb screw

• 1 × 1/4"-20 screw adaptor

• 1 × S4 L-shaped Allen key

• 1 × User documentation

PLEASE NOTE

Install the mount only on a clean, dry, smooth and non-porous surface. It is not suitable for textured, dirty, wet, porous or heavily curved surfaces. Check the suction seal and all locking points before every use and periodically during extended recording.

Do not exceed the maximum 300 g load. When using the mount on a moving vehicle or in high-vibration conditions, an appropriate secondary safety tether is strongly recommended.

A smartphone clamp is required for phone mounting and is sold separately. Cameras, smartphones, lights, safety tethers and other accessories are not included.
