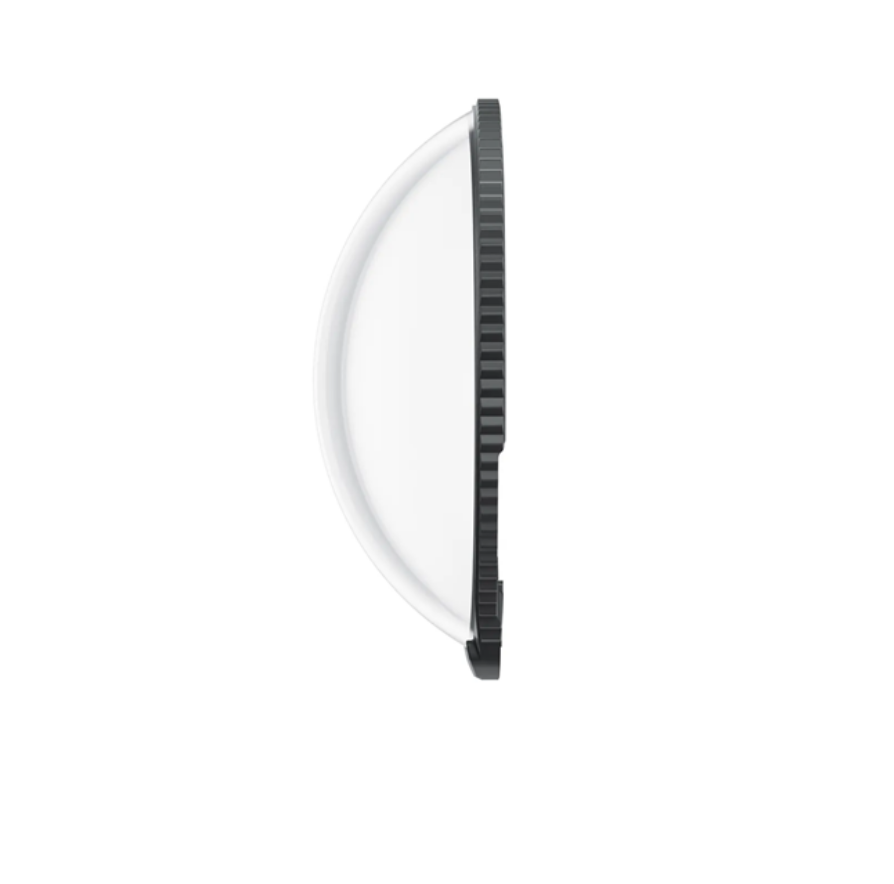

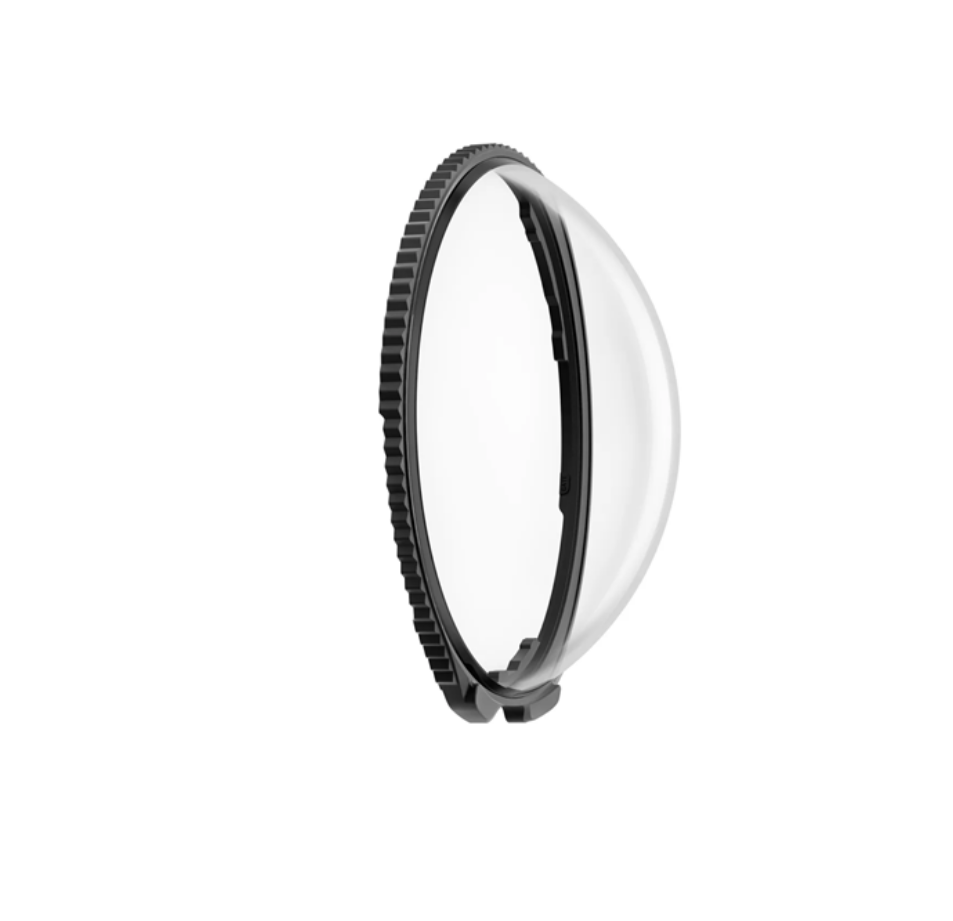

Insta360 X5 Premium Lens Guards

Product Overview

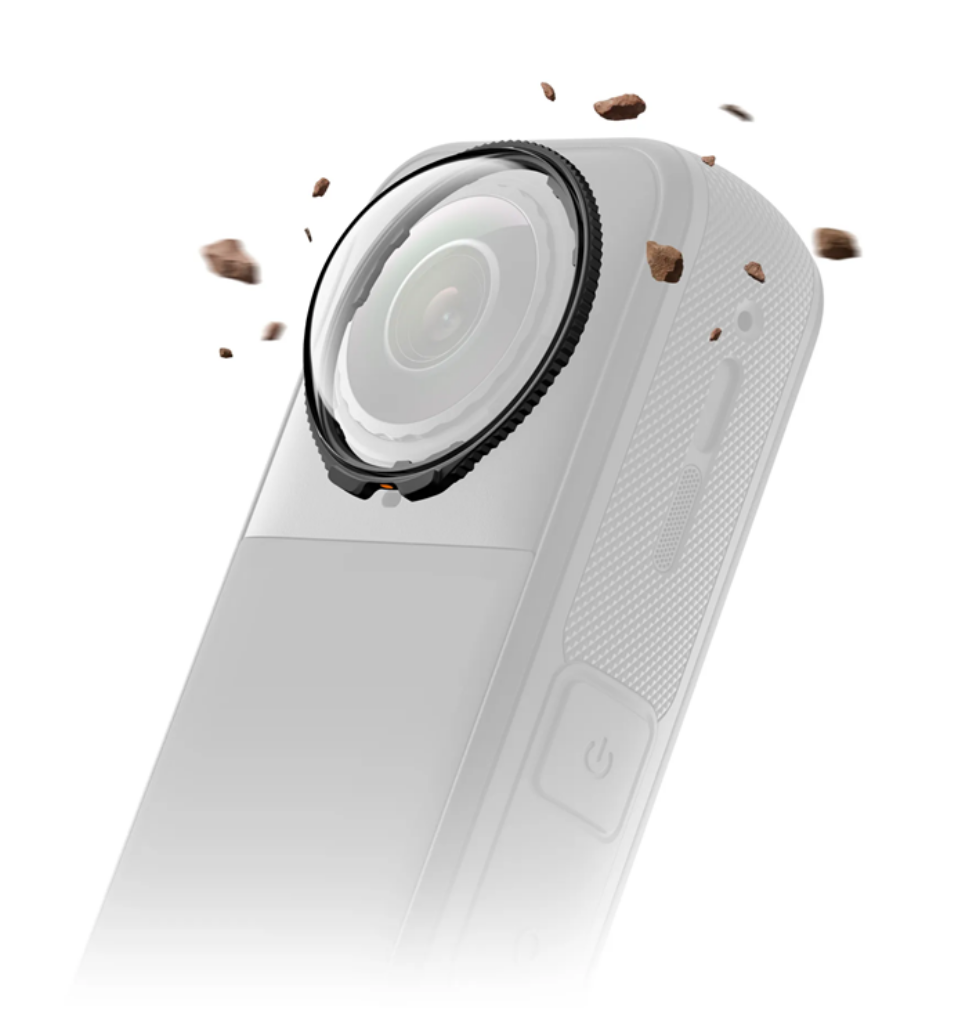

Protect the dual lenses of your Insta360 X5 during demanding activities with these Premium Lens Guards. Manufactured from tough 10H tempered glass, they provide an additional barrier against scratches, bumps and everyday wear while helping preserve the clarity of your 360° footage.

The multi-coated optical glass maximises light transmission and works with the camera’s stitching algorithm to produce clean, seamless footage. Once installed, the Insta360 X5 automatically recognises the guards and activates Lens Guard Mode, allowing you to start shooting without manually adjusting the settings.

A simple twist-lock mechanism makes both guards quick to install and remove whenever required.

Key Features

• Premium 10H tempered-glass protection

• Helps protect both X5 lenses from scratches and bumps

• Multi-coated glass maximises light transmission

• Designed to preserve image clarity and colour

• Optimised for seamless 360° stitching

• Automatically activates Lens Guard Mode

• Quick twist-lock installation and removal

• Lightweight and low-profile construction

• Includes guards for both camera lenses

• Genuine Insta360 accessory

Technical Specifications

Specification	Details
Brand	Insta360
Product type	Premium camera lens guards
Glass hardness	10H, laboratory tested
Lens material	Multi-coated tempered glass
Additional materials	Plastic and neodymium magnets
Guard dimensions	35.7 × 35.2 × 11.65 mm
Weight	Approximately 4.2 g
Installation	Twist-lock mechanism
Camera recognition	Automatic Lens Guard Mode
Colour	Clear
Compatibility	Insta360 X5 only
Manufacturer part number	6977644760277
UPC	842126109775

Package Contents

• 2 × Insta360 X5 Premium Lens Guards

• 1 × Lens cleaning cloth

Installation

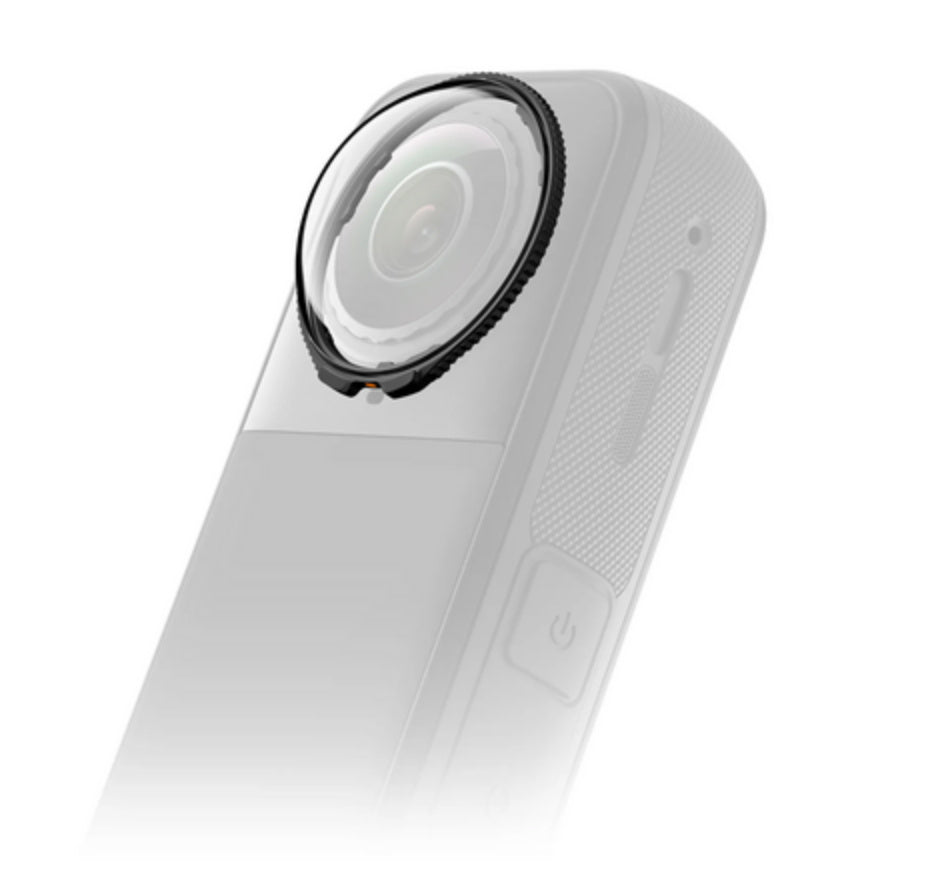

Align the raised section of each guard with the corresponding slot around the camera lens. Rotate the guard clockwise until its notch aligns with the camera’s microphone. Confirm that the Lens Guard Mode icon appears on the X5 display before recording.

Important Information

The Premium Lens Guards are not waterproof and should not be used in rain, underwater or during water-based activities. Remove them before installing the camera in a dive case.

Keep the camera lenses, guards and surrounding areas clean and completely dry to prevent fogging. Lens guards may introduce additional reflections or slightly reduce light transmission in certain conditions. They also contain magnets and should be kept away from pacemakers and other magnetically sensitive devices.
