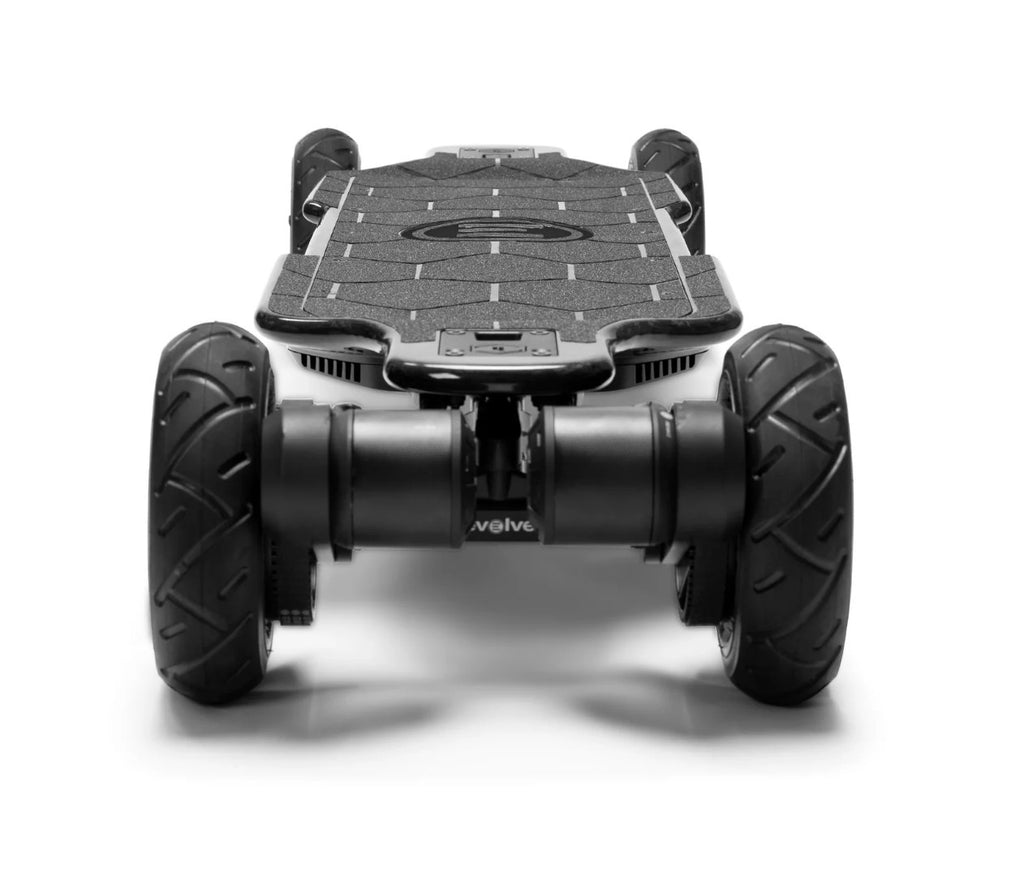

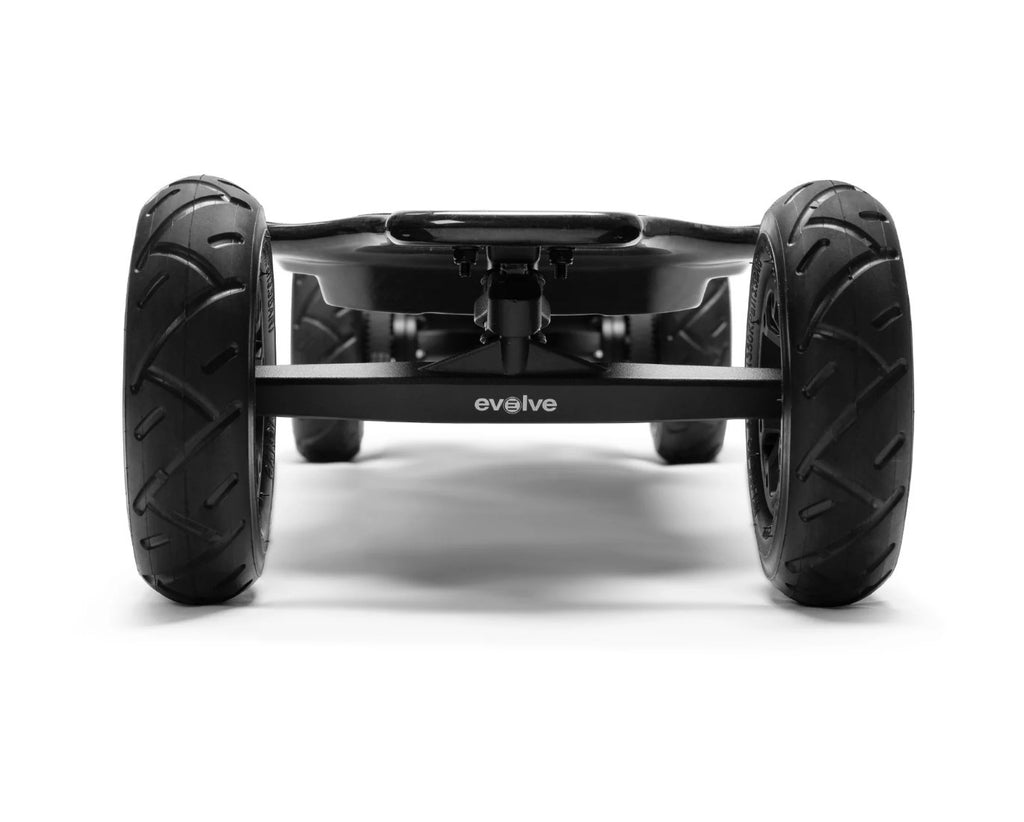

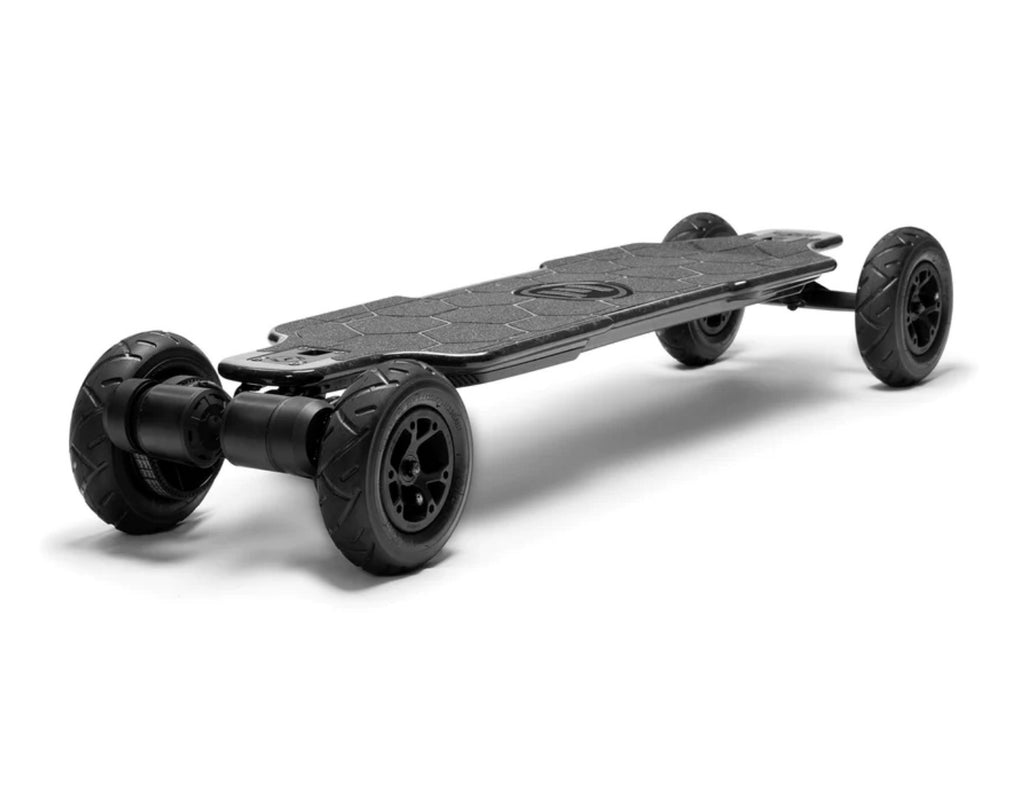

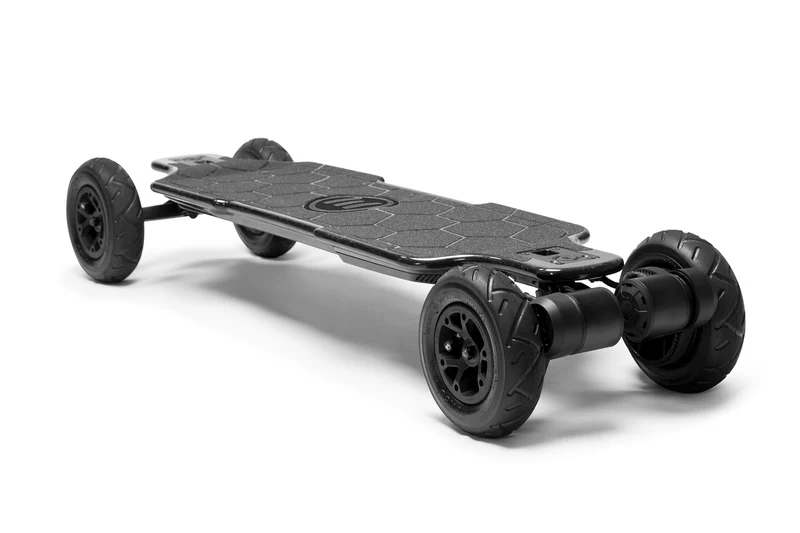

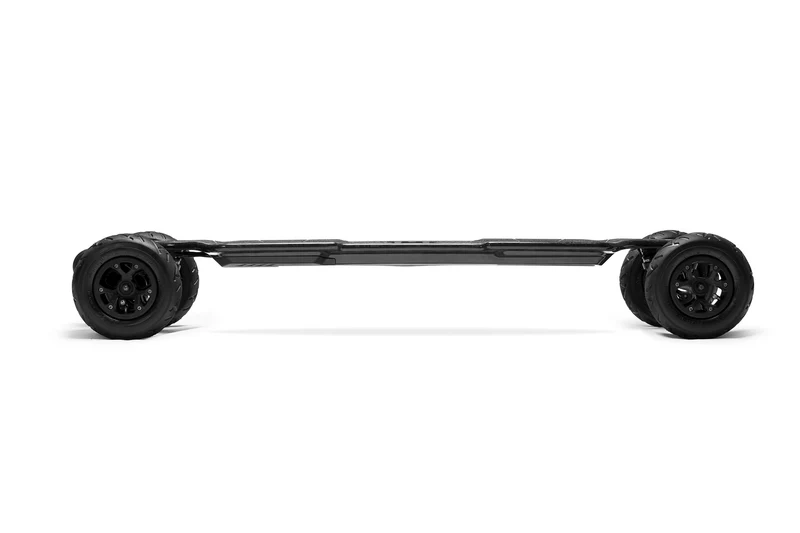

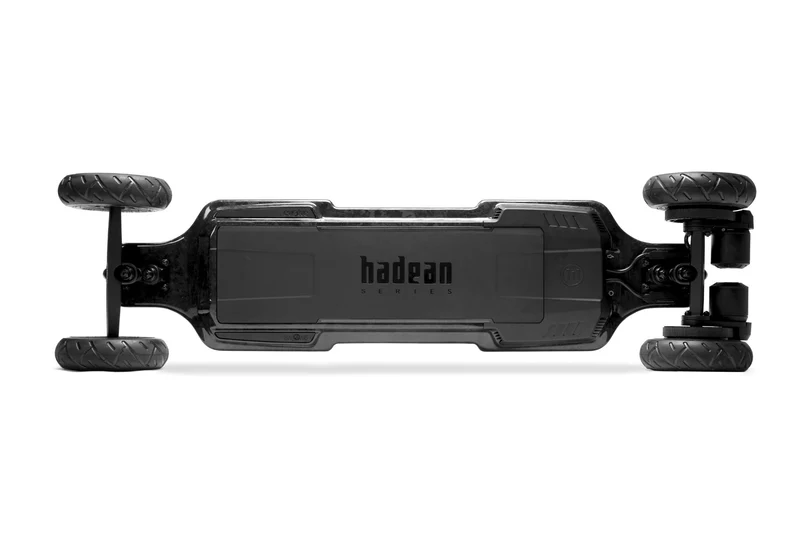

Evolve Hadean - Carbon All Terrain Skateboard
ABOUT THE BOARD
Introducing the Hadean Mainframe - our most heavily customized limited edition model to date. With only 14 boards available worldwide, seven in mystic purple and seven in neon green, this board is unparalleled in both its unique look and rarity. Each board features a unique hydro dipped design reminiscent of a circuit board look, custom hardware, and transparent battery casing.

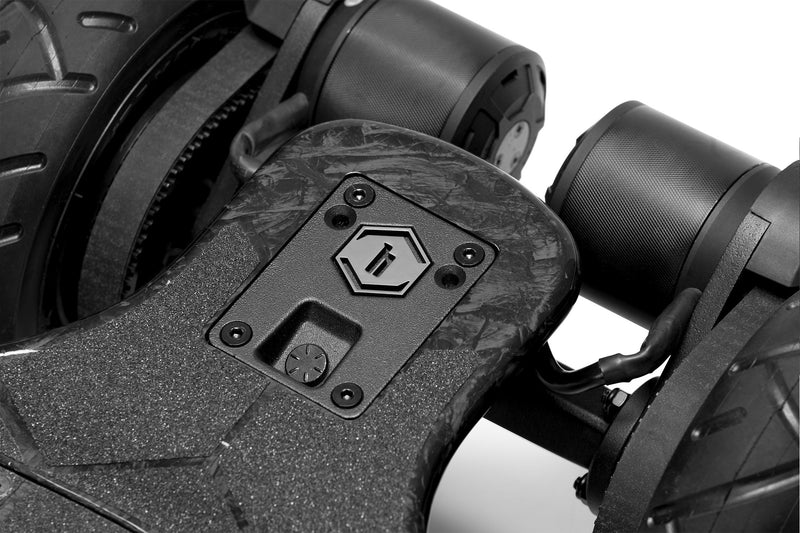

The polished raw hardware, including trucks, motor plates, base plates, and screws, add to the board's individual look to make you stand out from the pack. The clear battery enclosure showcases the board's exposing the battery cells and cutting-edge technology, making it a true collector's item.
Top speed of 42kph
Dual 3000w motors (Enough power to make it up the world's steepest street with ease)
40km Range (43.2V 16AH 12S4P 21700 691WH)
Heavy-duty Phaze remote (LCD display + 4 adjustable speed modes)
Smart integrated lighting (Responsive brake, fault/battery status, + full-color customization & animation sequences)
Explore By Evolve in-app customization (Adjust lighting hues + acceleration & braking curves)
E-FOC motor controller (Smooth control of Hadean's intense power)
Forged carbon fiber deck (Used on supercars for its lightweight strength)
Patent Pending deck (Maximum performance without bulk + cooling air vents)
Refined concave (Dropdown shoulders + wider foot landing to accommodate all shoe sizes)
The Hadean Mainframe uses the same electronics and firmware as the standard model, and power, speed & range are identical.
| Specs |
|
|
|---|---|---|
| Deck Materials | Forged carbon fibre | |
| Deck Length | 100cm (39.3") | |
| Wheel Base | 96.5cm (38") | |
| Trucks | Evolve Super Carve Trucks – Forged/CNC & Cast components – 30.6cm (12") width, 8mm axles | |
| Wheels | Evolve 175mm / 7 inch pneumatic tyres, Evolve all-terrain hubs – compatible with Evolve Street Conversion Kits | |

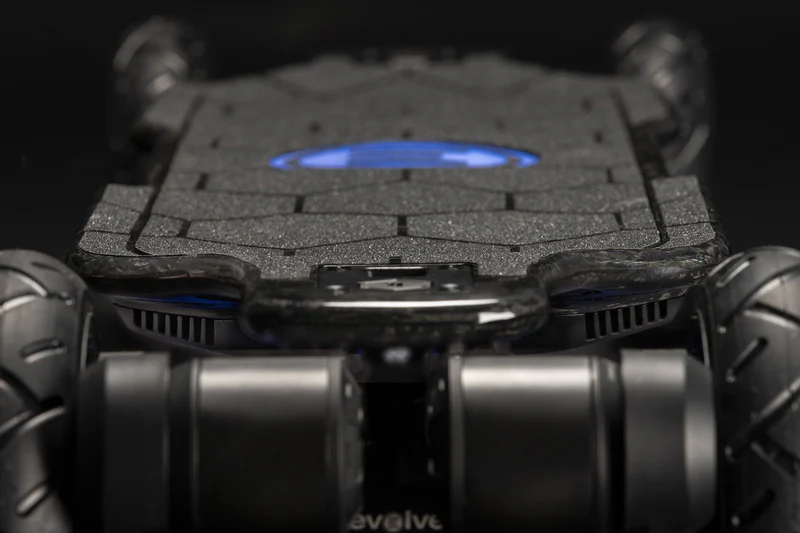

| Motor | Dual 3000w-rated 6368 custom brushless sensored motors | |
| Motor Controller / ESC | Evolve Custom 50V Dual-Motor Driver, FOC motor commutation, Bluetooth connection & adjustable acceleration curves | |
| Bearings | Evolve Precision Ceramic Bearings | |
| Battery | 43.2V, 16Ah, 691.2Wh, custom-built 12S4P configuration, 21700 cells on custom flexible PCB with custom BMS – max continuous discharge 140A | |
| Recharge | 3.5 – 4 hours | |
| Remote | Evolve Phaze remote with CNC aluminium-reinforced body | |
| Weight | 13.5kg (29.7lb) | |
| Range | 40km (24.8 miles) | |
| Top Speed | 42km/h (26mph) | |
| Max Load | 120kg / 265lb | |
| Suitable Terrain | Short grass, dirt, gravel, roads and footpaths | |
| Slides | Off-road: yes. Not recommended on sealed surfaces | |
| Hills | 35%+ | |
| Braking | FOC regenerative braking with smooth engagement and adjustable brake curves | |
| Aesthetics | World-first chassis-style deck made from forged carbon fibre with integrated CNC heatsink and cooling vents | |
| Lights | Integrated under-body & logo LED lights with user-customisable control via remote and Evolve app, including Smart Brake Lights |
