Evolve Diablo - Carbon All Terrian Skateboard

DIABLO Carbon
high-performance electric skateboard.

A BATTERY WITH UNMATCHED
CAPACITY

The Samsung 50S cells offer reliability, up to 20% more ride time, and a maximum discharge current of 180A, increasing the power of the Diablo!

Battery Warranty: 2 years.

ABOUT THE BOARD
Engineered to reach speeds up to 50 km/h and boasting a range of 50 km, this electric skateboard is built to handle diverse terrains effortlessly. Its forged carbon fiber deck ensures robustness and agility, providing a stable yet dynamic riding experience for adventurers seeking new thrills in any terrain. Equipped with Evolve's Super Carve 2 Trucks, the Diablo Carbon All-terrain offers enhanced stability and precise carving capabilities, delivering a ride that replicates the endless surf wave, or limitless snowboard run.



Powered by the Samsung 50S cell, this board sets a new benchmark in ride times and power efficiency, making it ideal for extended adventures. The advanced eFOC 2.0 Motor Controller and ergonomic Phaze remote offer seamless connectivity and precise control, complemented by the Evolve App's real-time ride data displayed on a vibrant LCD. Designed to replicate the fluidity of surfing or snowboarding, the Diablo Carbon All-terrain merges cutting-edge technology with uncompromising performance.



Specification	Details
Deck Materials	Forged carbon fibre
Deck Length	100 cm (39.3")
Wheel Base	96.5 cm (38")
Trucks	Evolve Supercarve 2 – Forged/CNC – Black Finish
Wheels	Evolve 175 mm / 7 inch pneumatic tyres

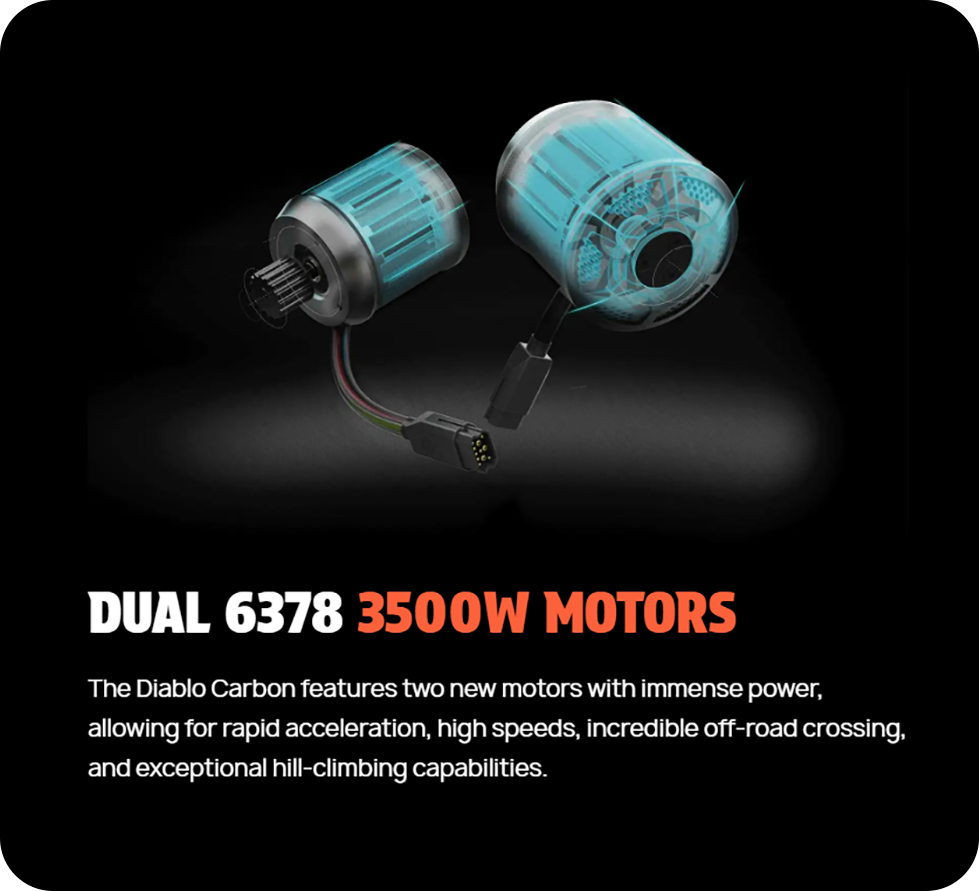

Motor	Dual 6374 3500W rated (7000W total) custom brushless sensored motors
Motor Controller / ESC	EFOC 2 – Evolve Custom 50V, 200A Dual-Motor Driver, FOC motor commutation, Bluetooth connection
Bearings	Evolve Precision Bearings
Battery	43.2V – 864Wh – 20Ah – Samsung 50S
Recharge Time	4 hours
Remote	Evolve Phaze remote with CNC aluminium-reinforced body
Weight	14.3 kg (31 lb)
Range	Up to 50 km (31 miles)
Top Speed	50 km/h (31 mph)
Max Load	120 kg (265 lbs)
Suitable Terrain	Short grass, dirt, gravel, roads and footpaths
Slides	Off-road: yes / Not recommended on sealed surfaces
Hills	45%+ gradient
Braking	EFOC2 regenerative braking, adjustable brake and acceleration curves via Explore App

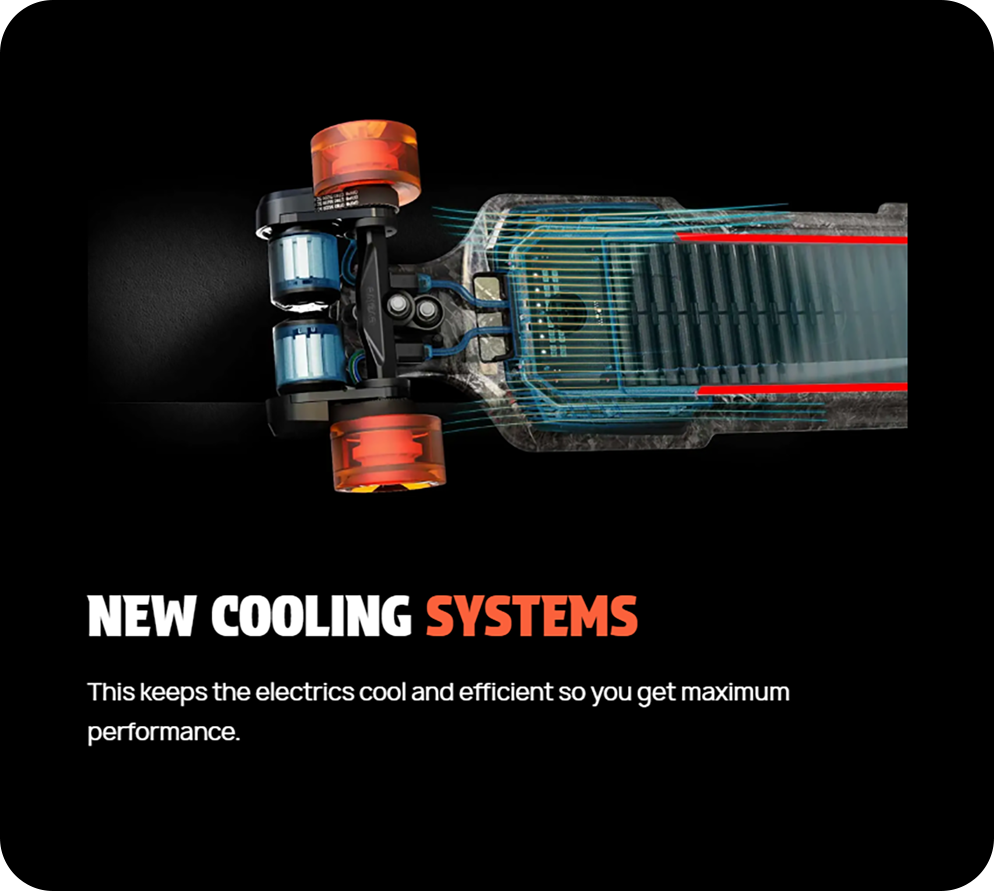

Aesthetics	Industry-leading forged carbon fibre chassis-style deck with integrated CNC heatsink and cooling vents

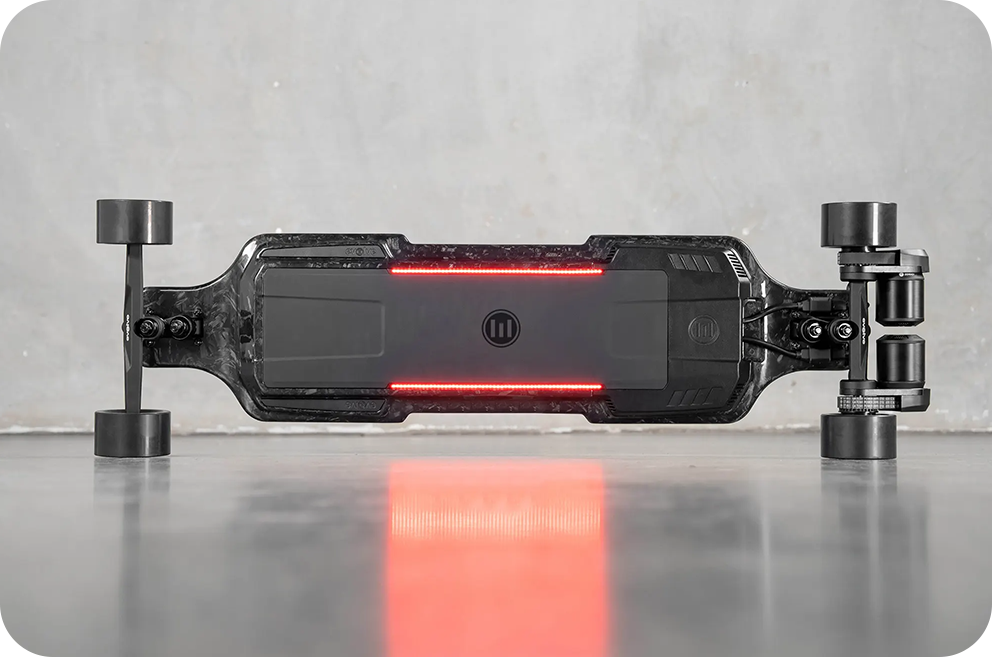

Lights	Integrated under-body & logo LED lights with user-customisable control, including Smart Brake Lights
