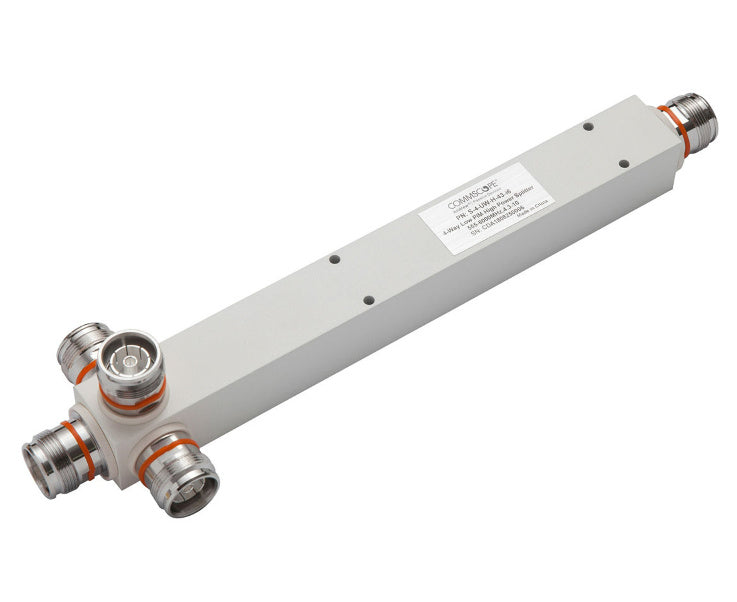

CommScope 4-Way Low PIM 4.3-10 Female High Power Splitter, 555–6000 MHz

CommScope 4-Way Low PIM High-Power Splitter (555–6000 MHz)

Optimize your RF network performance with the CommScope S-4-UW-H-43-I6, a robust four-way reactive splitter designed for high-power applications and ultra-wideband compatibility across both indoor and outdoor environments.

---

Key Features

• Wide Frequency Range: Operates from 555 MHz up to 6000 MHz, supporting technologies like LTE and 5G.ANDREWportal.powertec.com.au

• Low PIM Performance: Outstanding 3rd-order intermodulation distortion (PIM) rating of –165 dBc, ensuring minimal signal distortion.ANDREWportal.powertec.com.au

• High Power Capability: Handles up to 300 W average power and 3 kW peak power, making it suitable for high-load RF systems.ANDREW+1

• Reactive Split Design: Ensures efficient signal division with low insertion loss and approximately 6 dB split loss per output.ANDREW+1

• Minimal Insertion Loss & Low VSWR: Excellent performance across bands:

  • Insertion Loss: 0.3 dB (@555–2700 MHz), 0.55 dB (@2700–3800 MHz), 0.75 dB (@3800–4900 MHz), 1.4 dB (@4900–6000 MHz)ANDREW+1

  • VSWR: ≤ 1.25:1 up to 3800 MHz; ≤ 1.3:1 above that.ANDREW+1

• Reliable Connectors: Features 4.3-10 Female input and output ports, with 50 Ω impedance.ANDREWportal.powertec.com.au

---

Durability & Design

• Rugged Build: Designed for both indoor and outdoor use, with durable plating (silver inner, trimetal outer) on connectors.solidsignal.comANDREW

• Compact, Lightweight: Measures approximately 254 × 66 × 45 mm, weighing around 0.39 kg.ANDREW+1

• Robust Operation Specs: Functions reliably in temperatures from –35 °C to +85 °C, and withstands high humidity, corrosion, and dust with IP67 ingress protection.ANDREW+1

• Certifications: Compliant with ISO 9001:2015, RoHS (including CHINA-RoHS and UK-RoHS), and REACH-SVHC standards.ANDREW+1

---

Why Choose This Model?

• High Signal Integrity: Ultra-low PIM and impressive insertion loss keep your signal clean and reliable—ideal for modern RF applications.

• Wideband Flexibility: Covers a broad spectrum of frequencies, making it a future-proof solution across multiple technologies.

• Built for Real-World Conditions: Its rugged build and IP67 rating mean it’s ready for challenging field deployments.

• High Performance Under Load: With superior power handling, it suits heavy-duty installations with ease.

---

Product Snapshot

• Model: S-4-UW-H-43-I6

• Frequency Range: 555 MHz – 6000 MHz

• Power Handling: 300 W (avg) / 3 kW (peak)

• PIM (3rd Order): –165 dBc

• Insertion Loss: 0.3–1.4 dB depending on frequency

• VSWR: ≤ 1.25:1 (low band), ≤ 1.3:1 (high band)

• Connectors: 4.3-10 Female, 50 Ω

• Dimensions: 254 × 66 × 45 mm

• Weight: ~0.39 kg

• Operating Temperature: –35 °C to +85 °C

• Ingress Protection: IP67

• Certifications: ISO 9001, RoHS, CHINA-RoHS, UK-RoHS, REACH-SVHC
