Baseus - Super Mini Digital Display Power Bank 20000mAh 22.5W

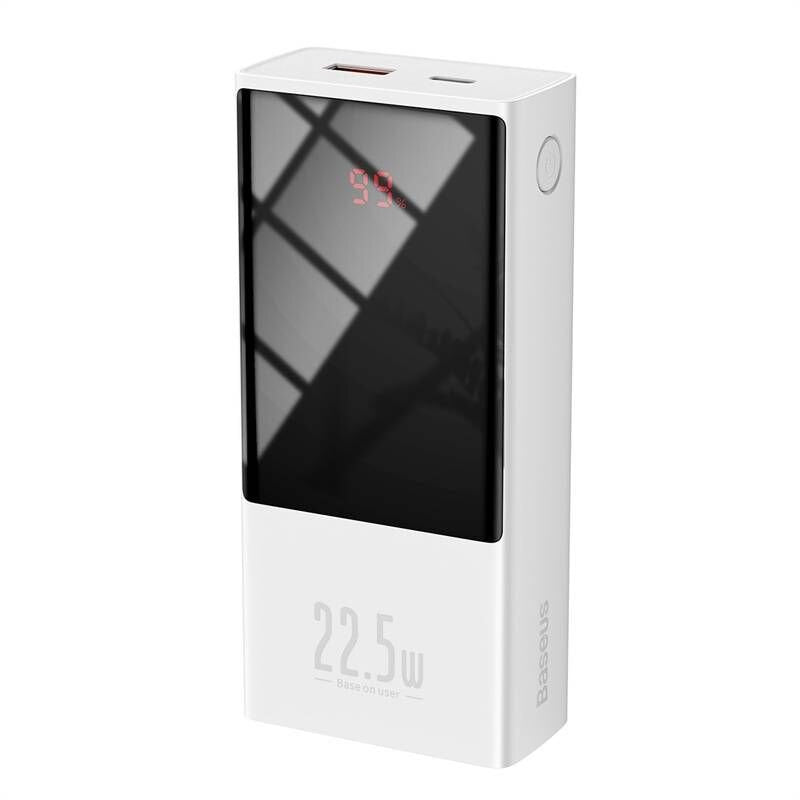

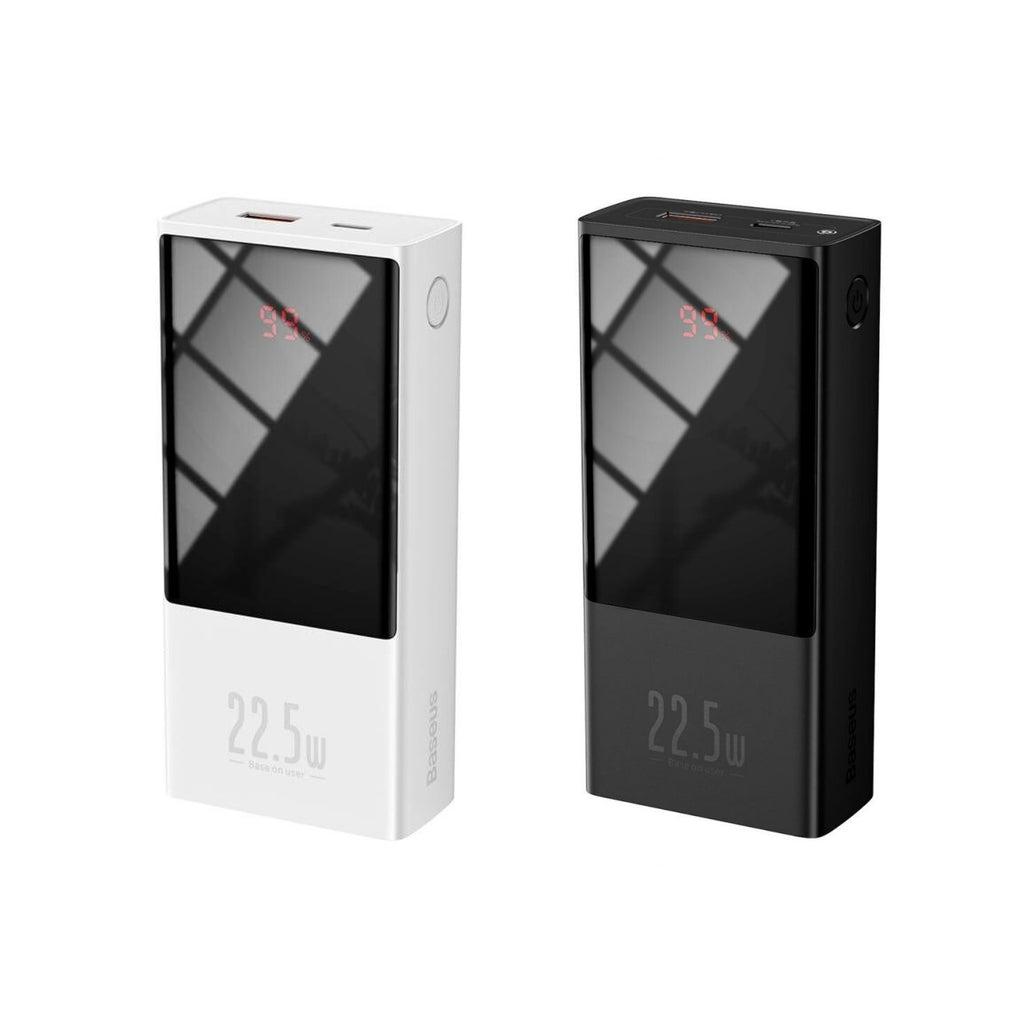

Baseus Super Mini Digital Display Power Bank 20000mAh – 22.5W Fast Charging, USB-C & USB-A

General Description

Stay powered throughout the day with the Baseus Super Mini Digital Display Power Bank. Featuring a large 20,000mAh battery capacity and up to 22.5W fast charging, this compact portable charger is designed to keep smartphones, tablets, wireless earphones and other compatible USB devices ready for use.

The power bank includes one USB-A fast-charging port and one USB-C input/output port, allowing you to charge up to two devices at the same time. Support for popular fast-charging technologies, including Power Delivery, Quick Charge, Huawei SCP and FCP, Samsung AFC and PE, provides efficient charging across a wide range of compatible devices.

A convenient digital display shows the remaining battery percentage, so you can easily check when the power bank needs to be recharged. Its intelligent charging system automatically detects the connected device and adjusts the charging current accordingly.

Despite its high capacity, the Baseus Super Mini features a compact body that is easy to carry in a backpack, handbag or travel bag, making it a practical power solution for work, commuting and everyday use.

Key Features

• 20,000mAh High-Capacity Battery: Provides extended portable power for smartphones, tablets and other compatible devices.

• Up to 22.5W Fast Charging: Delivers efficient charging through the compatible USB-A output.

• USB-C Input and Output: Use the USB-C port to recharge the power bank or charge compatible devices.

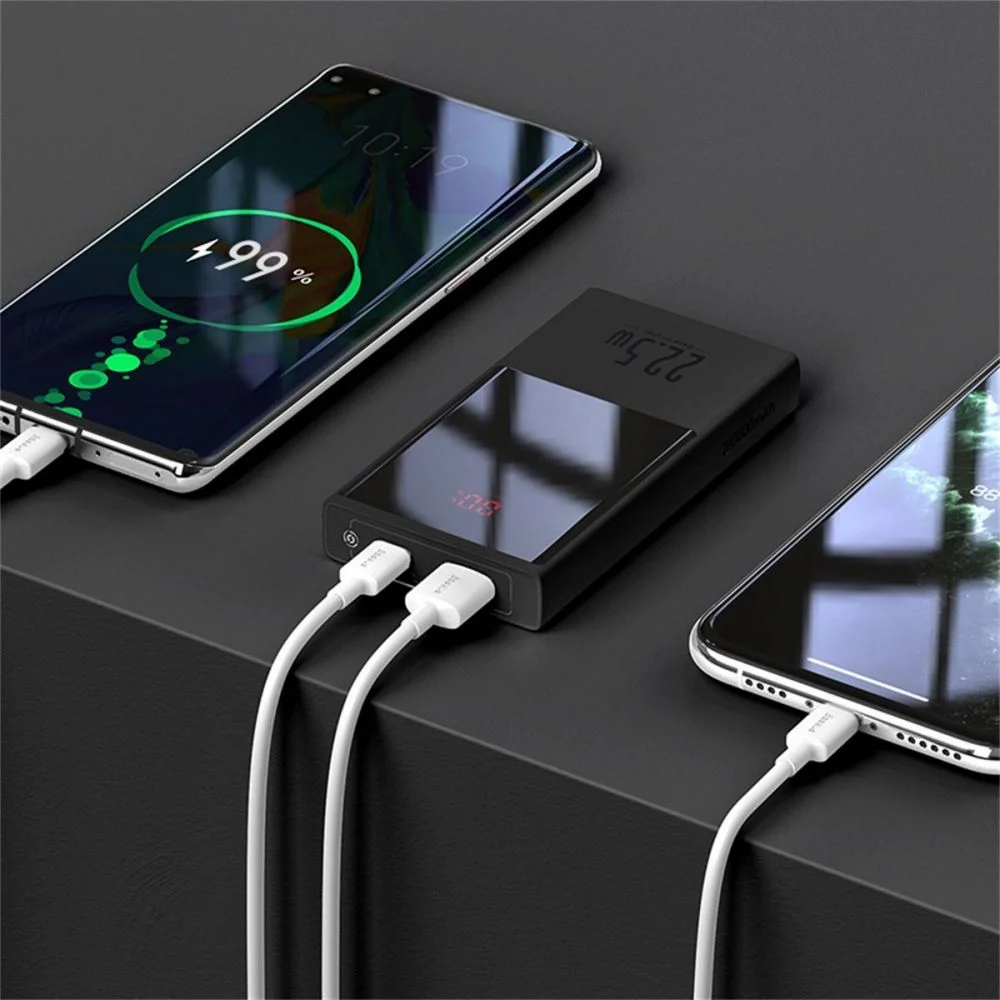

• Dual-Device Charging: Charge two compatible devices simultaneously using the USB-A and USB-C ports.

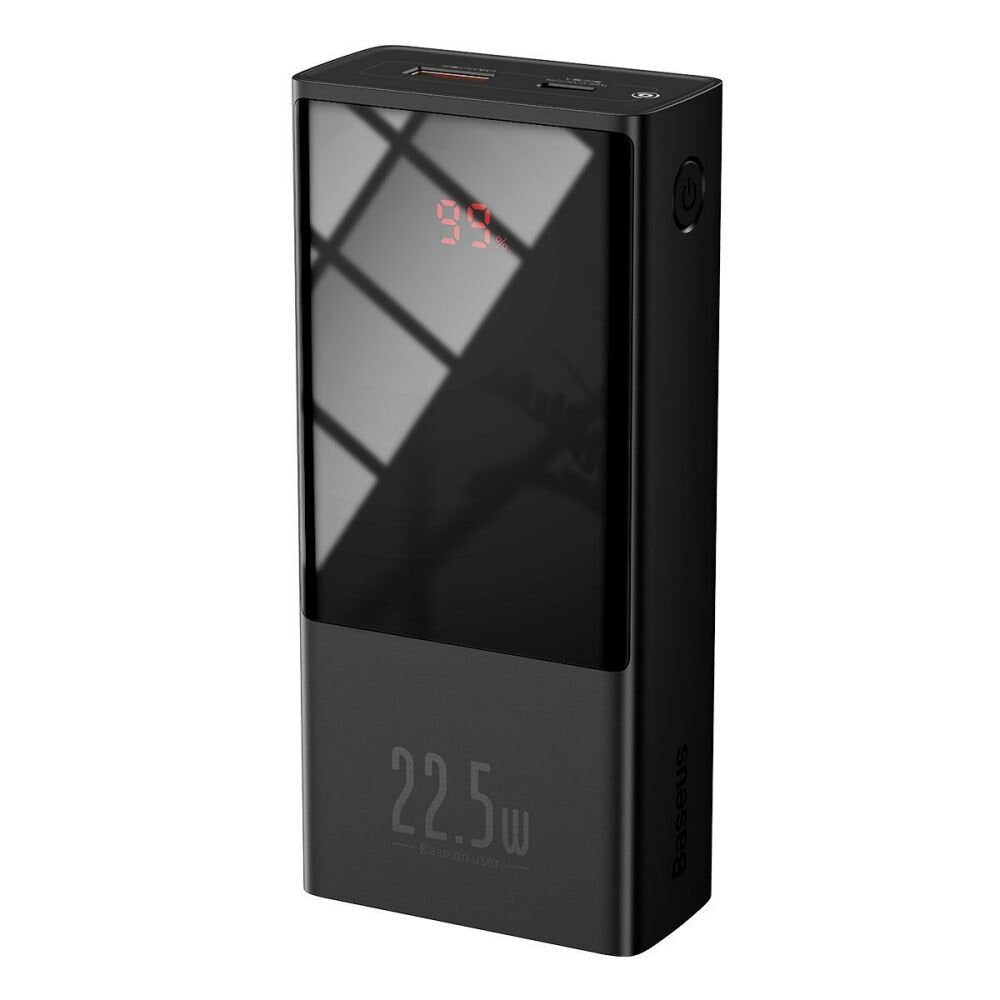

• Digital Battery Display: Clearly shows the remaining battery percentage in real time.

• Multiple Fast-Charging Protocols: Supports PD, QC 3.0, SCP, FCP, AFC and PE charging technologies.

• Intelligent Device Detection: Automatically identifies the connected device and provides an appropriate charging current.

• Automatic Charging: Charging begins automatically after a compatible device is connected.

• Pass-Through Charging Support: Allows connected devices to receive power while the power bank itself is being charged.

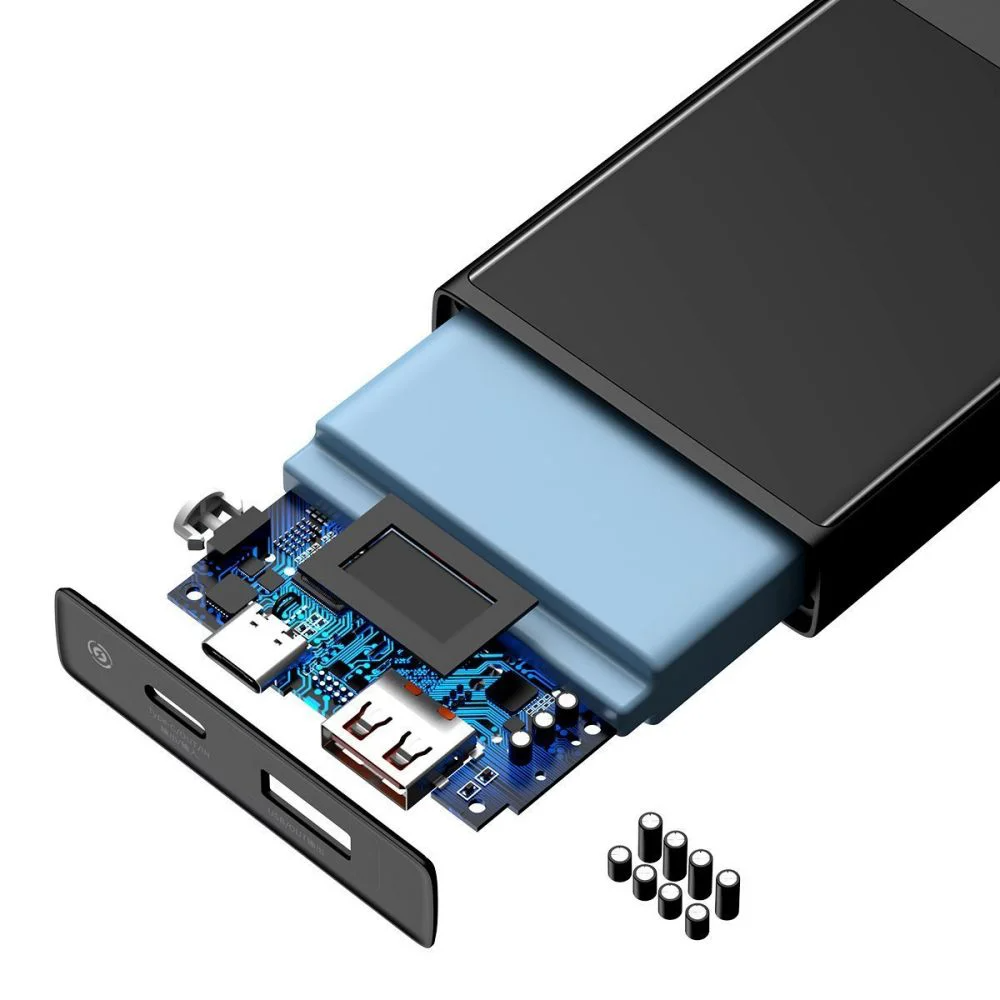

• Advanced Safety Protection: Helps protect against overcharging, over-discharging, overheating, overcurrent, voltage surges and short circuits.

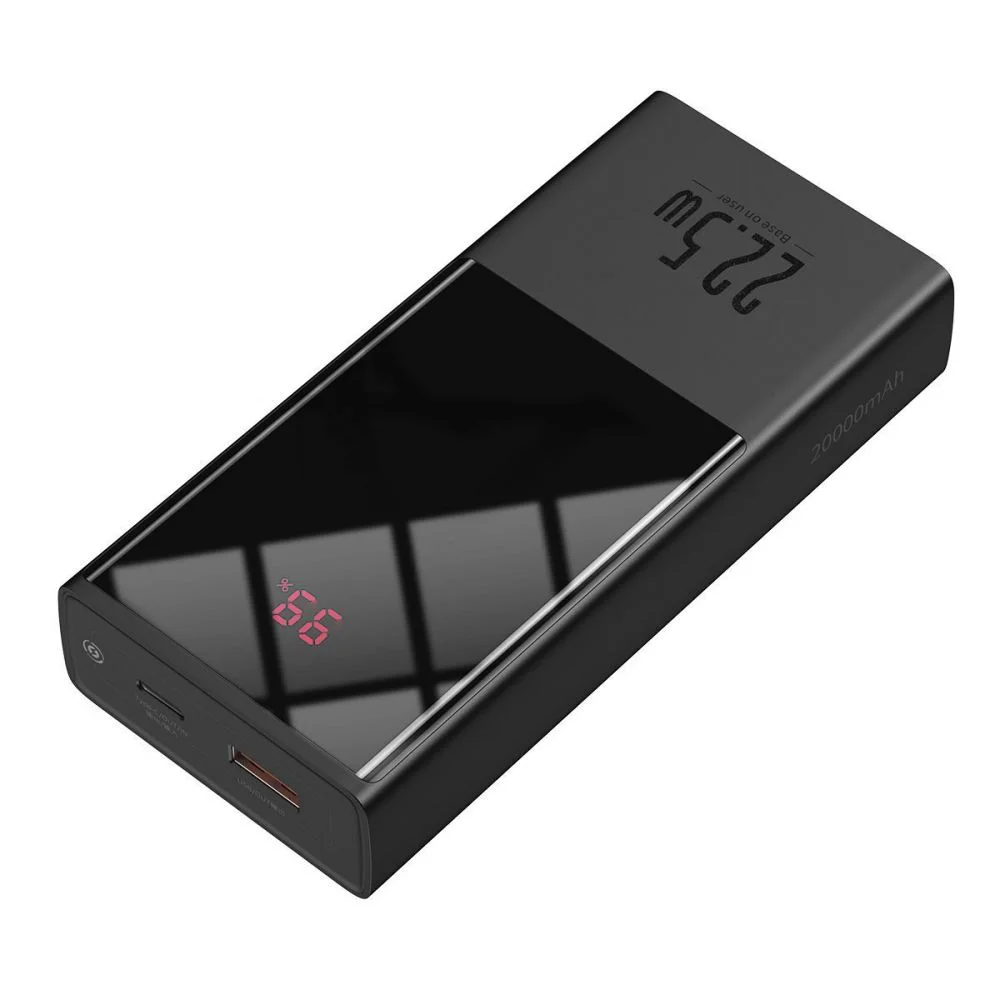

• Compact High-Capacity Design: Combines a 20,000mAh battery with a portable, space-saving body.

• Wide Compatibility: Suitable for compatible Apple, Samsung, Huawei, Xiaomi and other USB-powered devices.

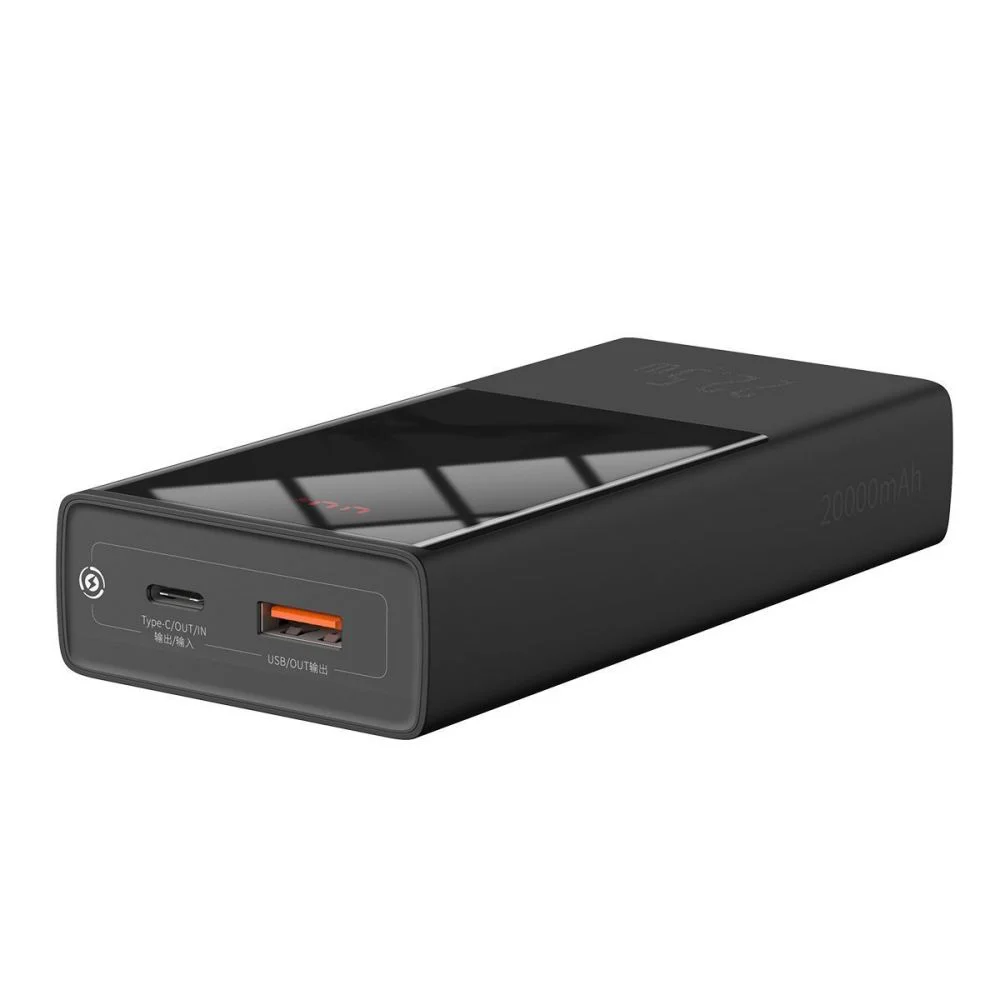

Charging Ports

USB-A Fast-Charging Output

The USB-A port supports up to 22.5W output with compatible devices and charging protocols.

• 4.5V/5A

• 5V/4.5A

• 5V/3A

• 9V/2A

• 12V/1.5A

USB-C Input and Output

The USB-C port can be used to recharge the power bank and to charge compatible USB-C devices.

USB-C Input:

• 5V/3A

• 9V/2A

USB-C Output:

• 5V/3A

• 9V/2A

• 12V/1.5A

Combined Output

When the USB-A and USB-C ports are used simultaneously, the maximum combined output is:

• 5V/3A

Technical Specifications

Specification	Details
Brand	Baseus
Product Name	Super Mini Digital Display Power Bank
Model Number	PPMN-B01
Product Type	Portable fast-charging power bank
Battery Capacity	20,000mAh
Battery Energy	77Wh
Battery Voltage	3.85V
Battery Type	Lithium-polymer battery
Maximum Output Power	22.5W
USB-A Ports	1
USB-C Ports	1 input/output port
Fast-Charging Protocols	PD, QC 3.0, SCP, FCP, AFC and PE
USB-C Input	5V/3A, 9V/2A
USB-C Output	5V/3A, 9V/2A, 12V/1.5A
USB-A Output	4.5V/5A, 5V/4.5A, 5V/3A, 9V/2A, 12V/1.5A
Combined Output	5V/3A maximum
Display Type	Digital battery percentage display
Dimensions	122 × 54 × 29mm
Weight	Approximately 330g
Colour	Black
EAN	6953156226913

Compatible Devices

The Baseus Super Mini Power Bank is suitable for charging compatible:

• Apple iPhones

• Samsung Galaxy smartphones

• Huawei smartphones

• Xiaomi and Redmi smartphones

• Android smartphones

• Tablets

• Wireless earphones

• Portable speakers

• Cameras

• Gaming accessories

• Other USB-A or USB-C powered devices

Fast-charging speed depends on whether the connected device and charging cable support the required charging protocol.

Safety Protection

The built-in intelligent protection system helps protect the power bank and connected devices against:

• Overcharging

• Over-discharging

• Overcurrent

• Overvoltage

• Excessive temperature

• Short circuits

• Power surges

• Electromagnetic interference

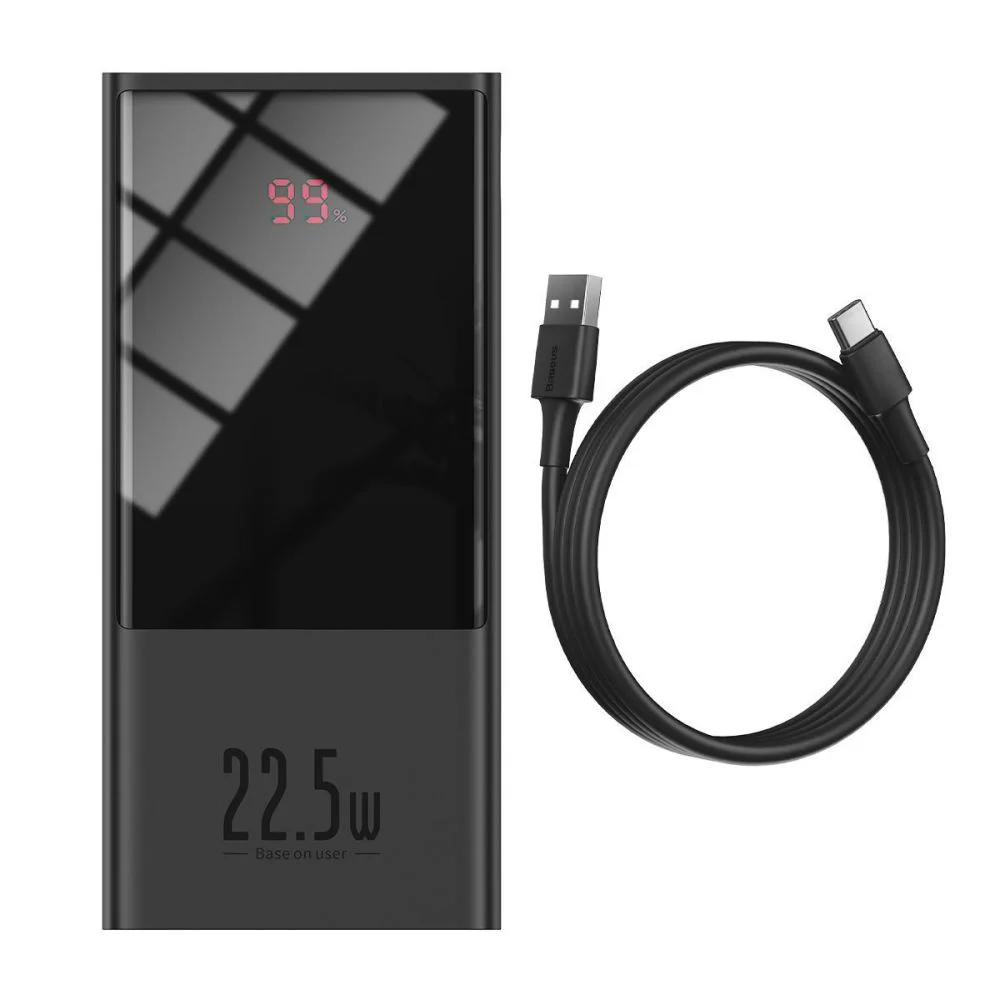

What’s Included

• 1 × Baseus Super Mini Digital Display Power Bank

• 1 × User Documentation

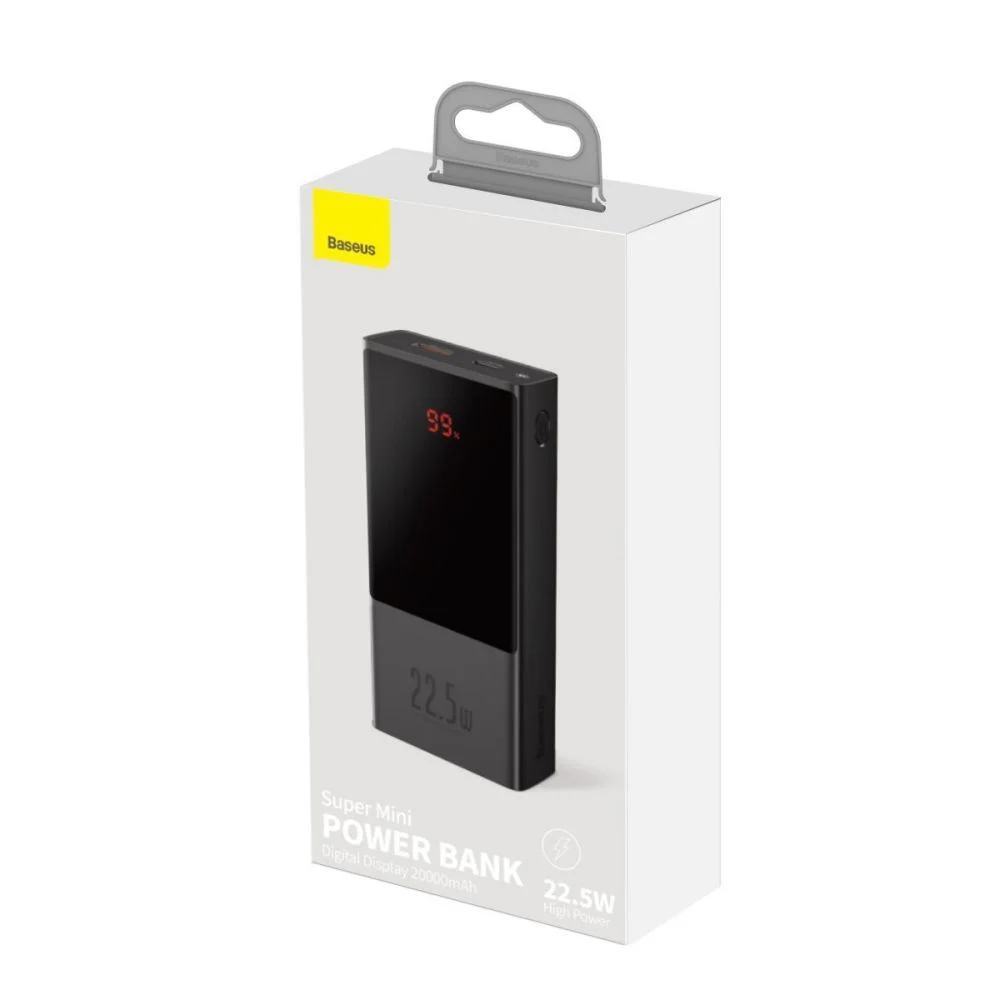

• 1 × Original Product Packaging

Charging cable and wall charger inclusion may vary depending on the supplier or regional package.

Ideal For

The Baseus Super Mini Power Bank is ideal for:

• Everyday smartphone charging

• Work and university

• Commuting

• Business trips

• Holidays and travel

• Outdoor activities

• Emergency backup power

• Users who need to charge two devices at once

Important Information

The maximum 22.5W output requires a compatible device, fast-charging protocol and suitable charging cable. When two devices are connected simultaneously, charging power is shared between both ports and may be lower than the maximum single-port output.

The stated 20,000mAh capacity refers to the internal battery cell capacity. The usable output capacity will be lower due to voltage conversion, operating temperature, cable resistance and normal energy loss during charging.

Use a certified USB cable and compatible power adapter when recharging the power bank. Keep the product away from water, excessive heat, direct sunlight and flammable materials.
