iPhone 16 Pro Max - Technical Specifications
Model Identification

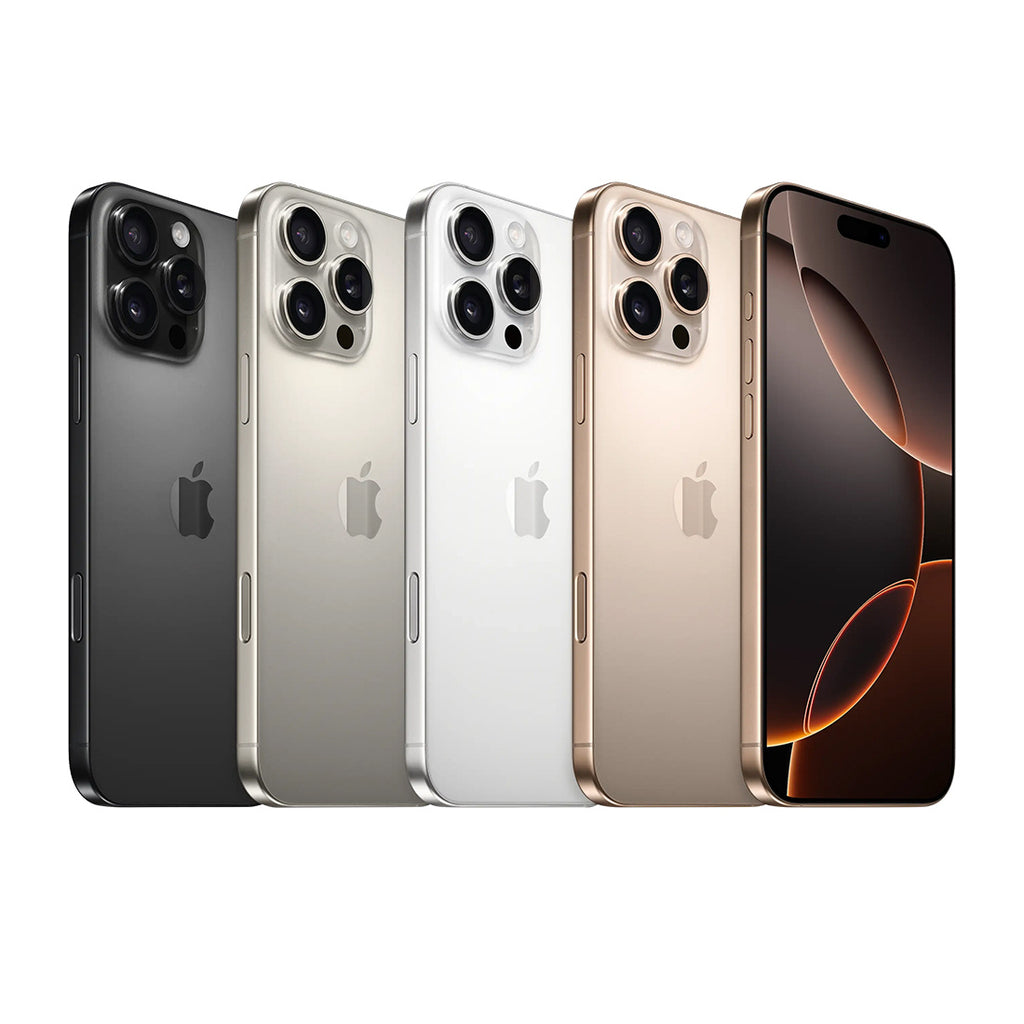

Finish
-
Black Titanium
-
White Titanium
-
Natural Titanium
-
Desert Titanium
Titanium design, Ceramic Shield front, matte textured glass back.
Capacity
-
256 GB
-
512 GB
-
1 TB
Size and Weight
-
Width: 77.6 mm
-
Height: 163 mm
-
Depth: 8.25 mm
-
Weight: 227 g
Display
-
Super Retina XDR display
-
6.9-inch OLED display (diagonal), edge-to-edge
-
Resolution: 2868 x 1320 at 460 ppi
-
Dynamic Island
-
Always-On display
-
ProMotion technology with adaptive refresh rates up to 120 Hz
-
HDR display
-
True Tone
-
P3 wide color gamut
-
Haptic Touch
-
Contrast ratio: 2,000,000:1 (normal)
-
Max brightness: 1,000 nits (normal); peak brightness: 1,600 nits (HDR); peak outdoor brightness: 2,000 nits; minimum brightness: 1 nit
-
Oleophobic coating resistant to fingerprints
-
Simultaneous display of multiple languages and characters
The iPhone 16 Pro Max display has rounded corners that follow the phone’s elegant curved design, with corners within a standard rectangle. When measured as a standard rectangle, the display is 6.86 inches diagonally (actual viewable area is smaller).
Water, Splash, and Dust Resistance
-
IP68 rating (up to 30 minutes at a maximum depth of 6 meters) according to IEC 60529
Apple Intelligence
The personal intelligence system built into your iPhone that helps you write, express yourself, and do everything with ease. Plus, its advanced privacy protections ensure that no one else, not even Apple, can access your data.
Chip
-
A18 Pro chip
-
New 6-core CPU with 2 performance cores and 4 efficiency cores
-
New 6-core GPU
-
New 16-core Neural Engine
Camera
-
Pro camera system
-
Fusion Camera 48 MP: 24mm, f/1.78 aperture, 2nd generation sensor-shift optical image stabilization, 100% Focus Pixels, supports ultra-high resolution photos (24 MP and 48 MP)
-
2x telephoto 12 MP: 48mm, f/1.78 aperture, 2nd generation sensor-shift optical image stabilization, 100% Focus Pixels
-
48 MP Ultra-wide: 13mm, f/2.2 aperture, 120° field of view, Hybrid Focus Pixels, ultra-high resolution photos (48 MP)
-
5x telephoto 12 MP: 120mm, f/2.8 aperture, 20° field of view, 100% Focus Pixels, seven-element lens, 3D sensor-shift optical image stabilization and autofocus, tetraprism design
Optical zoom: 5x to zoom in, optical zoom: 2x to zoom out; optical zoom range: 10x
Digital zoom up to 25x
Camera Controls
-
Customizable default lens (Fusion camera)
-
Sapphire crystal lens cover
-
Adaptive True Tone flash
-
Photonic Engine
-
Deep Fusion
-
Smart HDR 5
-
Next-generation portrait mode with Focus Control and Depth Control
-
Portrait Lighting with six effects
-
Night Mode
-
Night Mode Portraits with LiDAR scanner
-
Panoramic photos (up to 63 MP)
-
Next-generation Photographic Styles
-
Spatial photos
-
48 MP macro photography
-
Apple ProRAW
-
Wide color gamut in photos and Live Photos
-
Lens correction (Ultra-Wide camera)
-
Advanced red-eye correction
-
Auto image stabilization
-
Burst Mode
-
Geotagging
-
Image capture in HEIF, JPEG, and DNG formats
Video Recording
-
4K Dolby Vision video recording at 24 fps, 25 fps, 30 fps, 60 fps, 100 fps (Fusion camera) or 120 fps (Fusion camera)
-
1080p Dolby Vision video recording at 25 fps, 30 fps, 60 fps, or 120 fps (Fusion camera)
-
720p Dolby Vision video recording at 30 fps
-
Cinema Mode up to 4K Dolby Vision at 30 fps
-
Action Mode up to 2.8K Dolby Vision at 60 fps
-
Spatial video recording at 1080p at 30 fps
-
ProRes video recording up to 4K at 120 fps with external recording
-
Log video recording
-
Academy Color Encoding System (ACES)
-
Macro video recording, including slow-motion and time-lapse
-
1080p slow-motion video up to 240 fps, 4K Dolby Vision up to 120 fps (Fusion camera)
-
Time-lapse video with stabilization
-
Night Mode time-lapse video
-
QuickTake video up to 4K at 60 fps with Dolby Vision
-
Optical image stabilization by sensor-shift for video (Fusion camera)
-
Optical image stabilization 3D by sensor-shift and autofocus for video (telephoto camera)
-
Digital zoom up to 15x
-
Audio zoom
-
True Tone flash
-
Cinematic video stabilization (4K, 1080p, 720p)
-
Continuous autofocus video
-
8 MP photo capture while recording 4K video
-
Playback zoom
-
Video recording in HEVC, H.264, and ProRes formats
-
Stereo recording with Spatial Audio
-
Four studio-quality microphones
-
Wind noise reduction
-
Audio Mixing
TrueDepth Camera
-
12 MP camera
-
f/1.9 aperture
-
Autofocus with Focus Pixels
-
Retina Flash
-
Photonic Engine
-
Deep Fusion
-
Smart HDR 5
-
Next-generation portrait mode with Focus Control and Depth Control
-
Portrait Lighting with six effects
-
Animoji and Memoji
-
Night Mode
-
Next-generation Photographic Styles
-
Apple ProRAW
-
Wide color gamut in photos and Live Photos
-
Lens correction
-
Auto image stabilization
-
Burst Mode
-
4K Dolby Vision video recording at 24 fps, 25 fps, 30 fps, 60 fps, 100 fps (Fusion camera) or 120 fps (Fusion camera)
-
Cinema Mode up to 4K Dolby Vision at 30 fps
-
ProRes video recording up to 4K at 60 fps with external recording
-
Log video recording
-
Academy Color Encoding System (ACES)
-
1080p slow-motion video up to 120 fps
-
Time-lapse video with stabilization
-
QuickTake video up to 4K at 60 fps with Dolby Vision
-
Cinematic video stabilization (4K, 1080p, 720p)
-
Stereo recording with Spatial Audio
-
Wind noise reduction
-
Audio Mixing
Face ID
-
Facial recognition via the TrueDepth camera
Apple Pay
-
Pay with your iPhone using Face ID in stores and apps
Peace of Mind
-
Emergency SOS
-
Crash Detection
-
Satellite Messages
-
Satellite Find
Cellular and Wireless Connectivity
-
Model A3292* A3295*
-
FDD-5G NR (Bands n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n26, n28, n29, n30, n66, n70, n71, n75, n76)
-
TDD-5G NR (Bands n38, n40, n41, n48, n53, n77, n78, n79)
-
FDD-LTE (Bands 1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 66, 71)
-
TDD-LTE (Bands 34, 38, 39, 40, 41, 42, 48, 53)
-
UMTS/HSPA+/DC-HSDPA (850, 900, 1700/2100, 1900, 2100 MHz)
-
GSM/EDGE (850, 900, 1800, 1900 MHz)
-
5G (sub‑6 GHz) with 4x7 MIMO
-
Gigabit LTE with 4x7 MIMO
-
Wi-Fi 7 (802.11be) with 2x8 MIMO
-
Bluetooth 5.3
-
2nd generation Ultra-Wideband chip
-
Thread network technology
-
NFC with reader mode
-
Express Cards with backup charging
Audio Playback
Supported formats include AAC, APAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos
Spatial Audio playback
User-configurable maximum volume
Video Playback
Supported formats include HEVC, H.264, AV1, and ProRes
HDR playback with Dolby Vision, HDR10+/HDR10, and HLG
AirPlay for screen mirroring and photo/video playback up to 4K HDR via Apple TV (2nd generation or later) or AirPlay-compatible smart TVs
Video mirroring and video output support: up to 4K HDR via native DisplayPort output over USB-C or USB-C Digital AV Adapter (model A2119; sold separately)
Siri
Get help with everyday tasks such as sending messages, setting reminders, and more
Activate by saying “Hey Siri” or use Type to Siri
The intelligent assistant designed to protect your privacy
Powered by Apple Intelligence, Siri is now more natural and more helpful

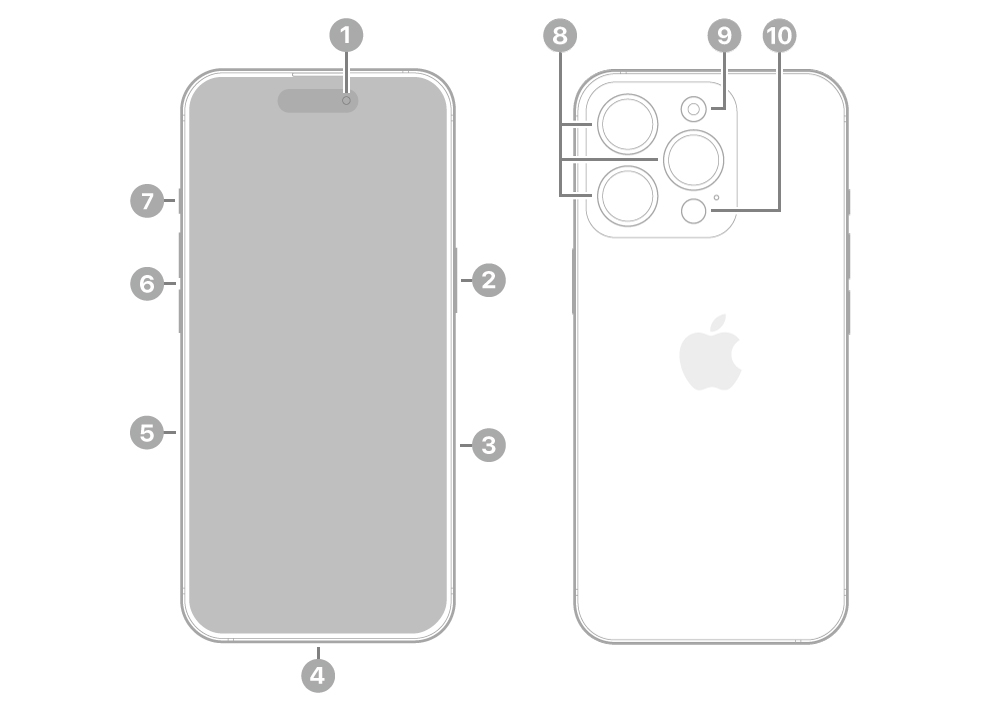

External Buttons and Connectors
1.Front camera
2.Side button
3.Camera Control
4.USB-C connector
5.SIM card tray (available on models purchased outside the U.S.)
6.Volume buttons
7.Action button
8.Rear cameras
9.Flash
10.LiDAR Scanner
Action Button Features
Silent Mode, Focus, Camera, Visual Intelligence, Flashlight, Voice Memo, Recognize Music, Translate, Magnifier, Controls, Shortcuts, or Accessibility
Camera Controls
Exposure, Depth, Zoom, Cameras, Styles, Tone
Charging and Expansion
USB-C connector supports:
-
Charging
-
DisplayPort
-
USB 3 (up to 10 Gb/s)
Power and Battery
Video playback: Up to 33 hours
Streaming video playback: Up to 29 hours
Audio playback: Up to 105 hours
Built-in rechargeable lithium-ion battery
Wireless charging up to 25 W with MagSafe chargers and a 30 W or higher adapter
Wireless charging up to 15 W with Qi2 chargers
Wireless charging up to 7.5 W with Qi chargers
Fast charge: Up to 50% charge in approximately 30 minutes with a 20 W or higher adapter (sold separately) using a USB-C charging cable, or a 30 W or higher adapter when using a MagSafe charger (sold separately)
MagSafe
Wireless charging up to 25 W with a 30 W or higher adapter
Magnetic ring
Alignment magnet
Accessory identification via NFC
Magnetometer
Sensors
Face ID
LiDAR Scanner
Barometer
High dynamic range gyroscope
High-g accelerometer
Proximity sensor
Dual ambient light sensors
