Apple iPhone 15 Pro Max

The iPhone 15 Pro Max is Apple's flagship phone released in 2023, distinguished by its lightweight titanium design, 6.7-inch Super Retina XDR display with ProMotion (120Hz), the powerful A17 Pro chip, and a professional camera system with a 48MP main sensor and a telephoto lens with 5x optical zoom, plus the addition of the customizable Action Button and a USB-C 3.0 port for fast transfers, offering a high-end experience with smooth performance and advanced features for photography and video.

iPhone 15 Pro Max – Technical Specifications

Finish
Black Titanium
White Titanium
Blue Titanium
Natural Titanium

Titanium design, Ceramic Shield front, textured matte glass back

Capacity
256 GB
512 GB
1 TB

Size and Weight
Width: 76.7 mm
Height: 159.9 mm
Depth: 8.25 mm
Weight: 221 g

---

Display

Super Retina XDR display
6.7-inch (diagonal) all-screen OLED display
2796 × 1290 resolution at 460 ppi

Dynamic Island
Always-On display
ProMotion technology with adaptive refresh rates up to 120 Hz
HDR display
True Tone
Wide color (P3)
Haptic Touch
2,000,000:1 contrast ratio (typical)
1,000 nits max brightness (typical); 1,600 nits peak brightness (HDR); 2,000 nits peak brightness (outdoor)
Fingerprint-resistant oleophobic coating
Supports multiple languages and characters simultaneously

The iPhone 15 Pro Max display has rounded corners that follow the phone’s curved design. Measured as a standard rectangle, the screen is 6.69 inches diagonally (actual viewable area is smaller).

---

Splash, Water, and Dust Resistance

IP68 rating (up to 6 meters for up to 30 minutes) under IEC standard 60529

---

Apple Intelligence

A personal intelligence system built into iPhone that helps you write, express yourself, and get things done effortlessly, with advanced privacy protections so no one else can access your data — not even Apple.

---

Chip

A17 Pro chip
New 6-core CPU with 2 performance cores and 4 efficiency cores
New 6-core GPU
New 16-core Neural Engine

---

Camera

Pro camera system

48 MP Main (wide): 24 mm, ƒ/1.78 aperture, second-generation sensor-shift optical image stabilization, 100% Focus Pixels, supports super-high-resolution photos (24 MP and 48 MP)

12 MP Ultra Wide: 13 mm, ƒ/2.2 aperture, 120° field of view, 100% Focus Pixels

12 MP 2× Telephoto (via quad-pixel sensor): 48 mm, ƒ/1.78 aperture, second-generation sensor-shift optical image stabilization, 100% Focus Pixels

12 MP 5× Telephoto: 120 mm, ƒ/2.8 aperture, 3D sensor-shift optical image stabilization and autofocus, tetraprism design

5× optical zoom in, 2× optical zoom out; 10× optical zoom range
Up to 25× digital zoom
Customizable default lens (Main)
Sapphire crystal lens cover
Adaptive True Tone flash

Photonic Engine
Deep Fusion
Smart HDR 5
Next-generation portraits with Focus and Depth Control
Portrait Lighting with six effects
Night mode
Night mode portraits enabled by LiDAR Scanner
Panorama (up to 63 MP)
Photographic Styles
Macro photography
Apple ProRAW
Wide color capture for photos and Live Photos
Lens correction (Ultra Wide)
Advanced red-eye correction
Auto image stabilization
Burst mode
Photo geotagging
Image formats: HEIF, JPEG, and DNG

---

Video Recording

4K video recording at 24 fps, 25 fps, 30 fps, or 60 fps
1080p HD video recording at 25 fps, 30 fps, or 60 fps
720p HD video recording at 30 fps

Cinematic mode up to 4K HDR at 30 fps
Action mode up to 2.8K at 60 fps
HDR video recording with Dolby Vision up to 4K at 60 fps
ProRes video recording up to 4K at 60 fps with external recording
Log video recording
Academy Color Encoding System (ACES)

Macro video recording, including slow motion and time-lapse
1080p slow-motion video at 120 fps or 240 fps
Time-lapse video with stabilization
Night mode time-lapse
QuickTake video

Second-generation sensor-shift OIS for video (Main camera)
Optical image stabilization for video (3× Telephoto)
3D sensor-shift OIS and autofocus for video (5× Telephoto)

Digital zoom up to 15× (iPhone 15 Pro Max)
Audio zoom
True Tone flash
Cinematic video stabilization (4K, 1080p, and 720p)
Continuous autofocus video
Take 8 MP photos while recording 4K video
Playback zoom
Video formats: HEVC, H.264, and ProRes
Stereo recording

---

TrueDepth Camera

12 MP camera
ƒ/1.9 aperture
Autofocus with Focus Pixels
Retina Flash

Photonic Engine
Deep Fusion
Smart HDR 5
Next-generation portraits with Focus and Depth Control
Portrait Lighting with six effects
Animoji and Memoji
Night mode
Photographic Styles
Apple ProRAW
Wide color capture for photos and Live Photos
Lens correction
Auto image stabilization
Burst mode

4K video recording at 24 fps, 25 fps, 30 fps, or 60 fps
1080p HD video recording at 25 fps, 30 fps, or 60 fps
Cinematic mode up to 4K HDR at 30 fps
HDR video recording with Dolby Vision up to 4K at 60 fps
ProRes video recording up to 4K at 60 fps with external recording
Log video recording
ACES support

1080p slow-motion video at 120 fps
Time-lapse video with stabilization
Night mode time-lapse
QuickTake video
Cinematic video stabilization (4K, 1080p, and 720p)

---

Face ID

Facial recognition via the TrueDepth camera

---

Apple Pay

Pay with your iPhone using Face ID in stores and apps

---

Safety

Emergency SOS
Crash Detection

---

Cellular and Wireless

5G NR (multiple bands supported)
FDD-LTE and TD-LTE support
UMTS/HSPA+/DC-HSDPA
GSM/EDGE

5G (sub-6 GHz) with 4×4 MIMO
Gigabit LTE with 4×4 MIMO and LAA
Wi-Fi 6E (802.11ax) with 2×2 MIMO
Bluetooth 5.3
Second-generation Ultra Wideband chip
Thread networking technology
NFC with reader mode
Express Cards with power reserve

---

Location

Precision dual-frequency GPS (GPS, GLONASS, Galileo, QZSS, BeiDou, NavIC)
Digital compass
Wi-Fi
Cellular
iBeacon microlocation

---

Video Calling

FaceTime video calls over cellular or Wi-Fi
FaceTime HD (1080p) video calls over 5G or Wi-Fi
SharePlay
Screen sharing
Portrait mode in FaceTime video calls
Spatial Audio
Microphone modes: Voice Isolation and Wide Spectrum
Optical zoom with rear camera

---

Audio Calling

FaceTime audio
VoLTE
Wi-Fi calling
SharePlay
Screen sharing
Spatial Audio
Microphone modes: Voice Isolation and Wide Spectrum

---

Audio Playback

Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos
Spatial Audio playback
User-configurable maximum volume

---

Video Playback

Supported formats include HEVC, H.264, AV1, and ProRes
HDR with Dolby Vision, HDR10, and HLG
AirPlay up to 4K HDR

Video mirroring and output up to 4K HDR via native DisplayPort over USB-C or USB-C Digital AV Adapter (sold separately)

---

Siri

Send messages, set reminders, and more using your voice
Activate with “Hey Siri”
Use voice to run shortcuts

---

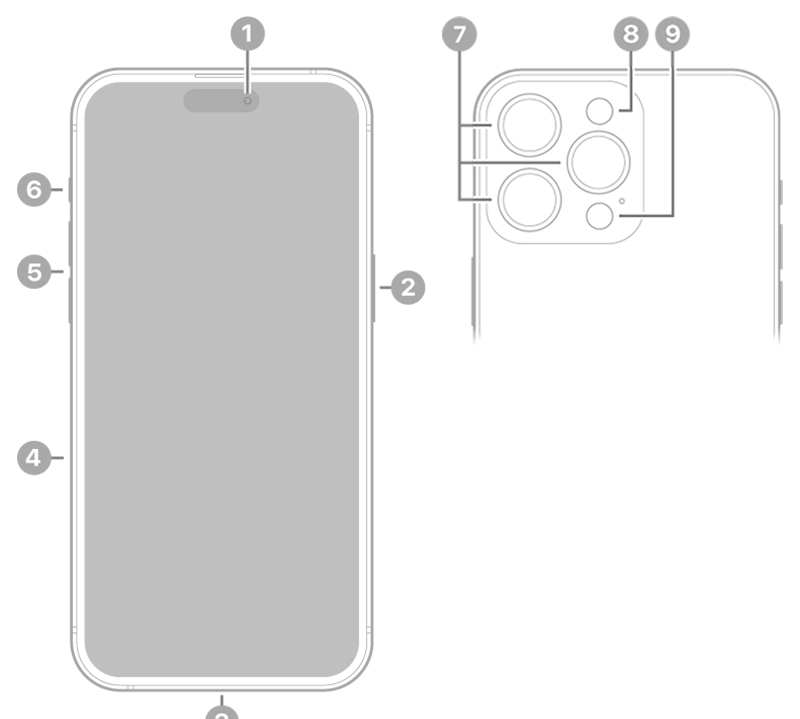

External Buttons and Connectors

Front camera
1.Side button
2.USB-C connector
3.SIM tray (available on models purchased outside the U.S.)
4.Volume buttons
5.Action button
6.Rear cameras
7.Flash
8.LiDAR Scanner

Action Button functions:
Silent Mode, Focus, Camera, Flashlight, Voice Memo, Translate, Magnifier, Shortcut, Accessibility

---

Charging and Expansion

USB-C connector supports:
Charging
DisplayPort
USB 3 (up to 10 Gb/s)

---

Power and Battery

Video playback: up to 29 hours
Streaming video playback: up to 25 hours
Audio playback: up to 95 hours

Built-in rechargeable lithium-ion battery
MagSafe wireless charging up to 15 W
Qi2 wireless charging up to 15 W
Qi wireless charging up to 7.5 W
Fast charge: up to 50% in around 30 minutes with a 20 W adapter or higher (sold separately)

---

MagSafe

Wireless charging up to 15 W
Magnetic ring
Alignment magnet
Accessory identification via NFC
Magnetometer

---

Sensors

Face ID
LiDAR Scanner
Barometer
High dynamic range gyroscope
High-g accelerometer
Proximity sensor
Dual ambient light sensors

---

Operating System

iOS
iOS is the world’s most personal and secure mobile operating system, with advanced features and built-in privacy protection.
