Apple iPhone 11 Pro Max

iPhone 11 Pro Max – Technical Specifications

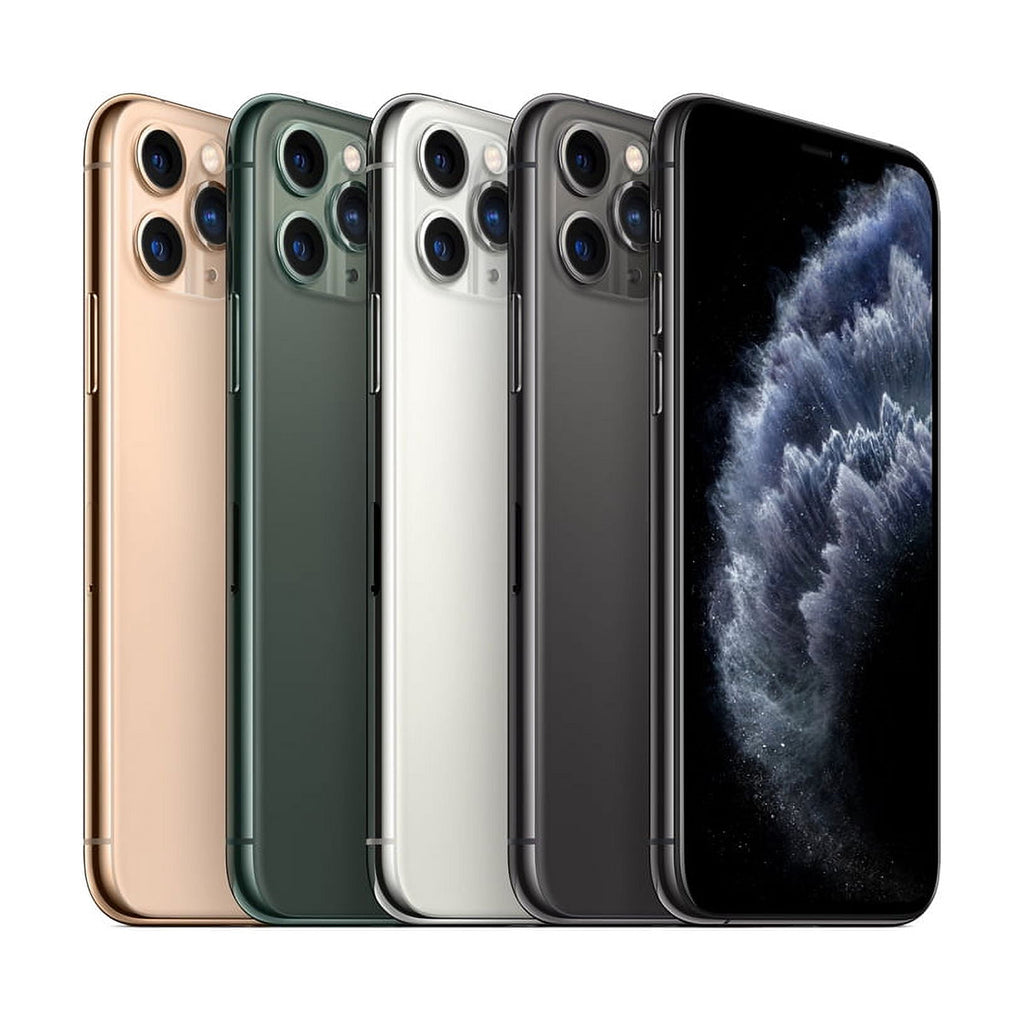

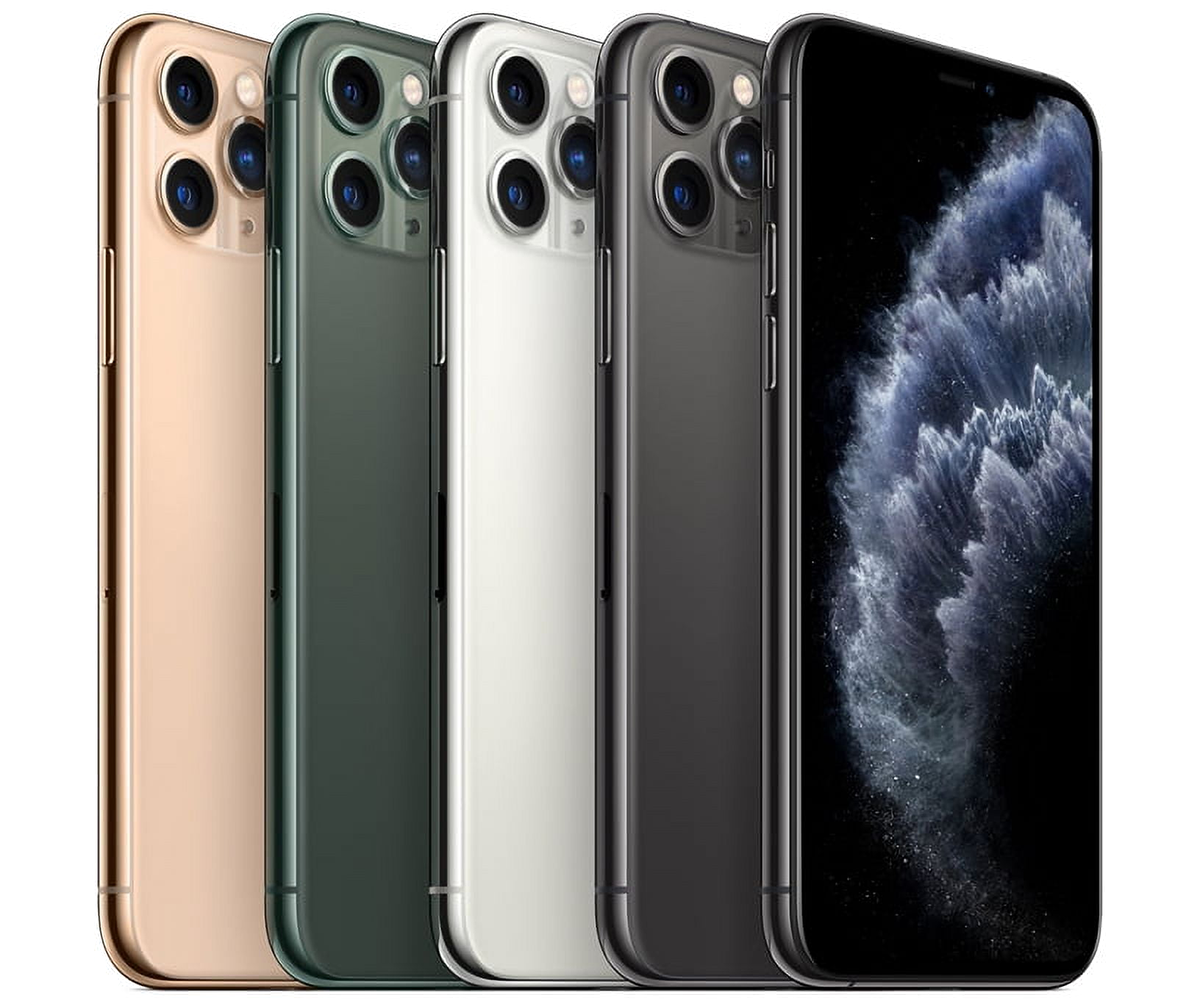

Finish

• Gold

• Space Gray

• Silver

• Midnight Green

Capacity

• 64 GB

• 256 GB

• 512 GB

Size and Weight

• Width: 77.8 mm

• Height: 158.0 mm

• Depth: 8.1 mm

• Weight: 226 g

Display

• Super Retina XDR display

• 6.5-inch (diagonal) all-screen OLED Multi-Touch display

• HDR display

• 2688 × 1242 resolution at 458 ppi

• 2,000,000:1 contrast ratio (typical)

• True Tone display

• Wide color (P3)

• Haptic Touch

• 800 nits max brightness (typical); 1200 nits max brightness (HDR)

• Fingerprint-resistant oleophobic coating

• Support for multiple languages and characters simultaneously

The iPhone 11 Pro Max display has rounded corners that follow a beautiful curved design. Measured as a standard rectangle, the screen is 6.46 inches diagonally (actual viewable area is less).

Splash, Water, and Dust Resistance

• Rated IP68 (maximum depth of 4 meters up to 30 minutes) under IEC standard 60529

Chip

• A13 Bionic chip

• Third-generation Neural Engine

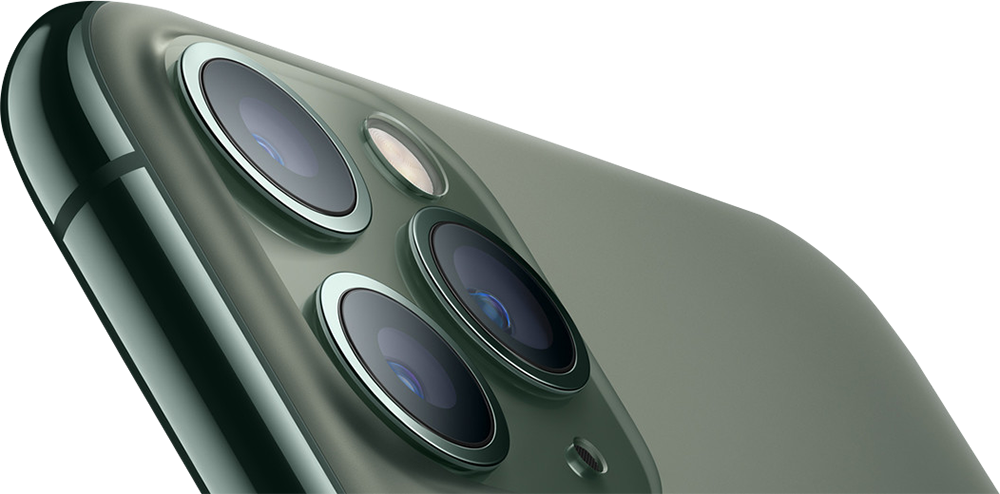

Camera System

Triple 12 MP cameras: Ultra Wide, Wide, and Telephoto

• Ultra Wide: ƒ/2.4 aperture and 120° field of view

• Wide: ƒ/1.8 aperture

• Telephoto: ƒ/2.0 aperture

• 2x optical zoom in; 2x optical zoom out; digital zoom up to 10x

• Portrait Mode with advanced bokeh and Depth Control

• Portrait Lighting with six effects (Natural, Studio, Contour, Stage, Stage Mono, High-Key Mono)

• Dual optical image stabilization (Wide and Telephoto)

• Five-element lens (Ultra Wide); six-element lens (Wide)

• Brighter True Tone flash with Slow Sync

• Panorama (up to 63 MP)

• Sapphire crystal lens cover

• 100% Focus Pixels (Wide)

• Night Mode

• Advanced red-eye correction

• Smart HDR (next-generation)

• Wide color capture for photos and Live Photos

• Auto image stabilization

• Burst mode

• Image formats: HEIF and JPEG

Video Recording

• 4K video recording at 24 fps, 30 fps, or 60 fps

• 1080p HD video at 30 fps or 60 fps

• 720p HD video at 30 fps

• Extended dynamic range for video up to 60 fps

• Optical image stabilization (Wide and Telephoto)

• 2x optical zoom in; 2x optical zoom out; digital zoom up to 6x

• Audio zoom

• Brighter True Tone flash

• QuickTake video with subject tracking

• 1080p slow-motion video at 120 fps or 240 fps

• Time-lapse with stabilization

• Cinematic video stabilization (4K, 1080p, and 720p)

• Continuous autofocus video

• Take 8 MP photos while recording 4K video

• Playback zoom

• Video formats: HEVC and H.264

• Stereo recording

TrueDepth Camera

• 12 MP

• ƒ/2.2 aperture

• Portrait Mode with advanced bokeh and Depth Control

• Portrait Lighting with six effects

• Animoji and Memoji

• 4K video at 24 fps, 30 fps, or 60 fps

• 1080p HD video at 30 fps or 60 fps

• 1080p slow-motion at 120 fps

• Smart HDR (next-generation)

• Extended dynamic range for video at 30 fps

• Cinematic video stabilization (4K, 1080p, and 720p)

• Wide color capture for photos and Live Photos

• Retina Flash

• Auto image stabilization

• Burst mode

Face ID

• Enabled by TrueDepth camera for facial recognition

Wireless and Cellular

Model A2215:

• FDD-LTE bands 1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 66

• TD-LTE bands 34, 38, 39, 40, 41, 42, 46, 48

• UMTS/HSPA+/DC-HSDPA (850/900/1700-2100/1900/2100 MHz)

• GSM/EDGE (850/900/1800/1900 MHz)

Model A2218:
(Same supported bands as A2215)

All models:

• Gigabit-class LTE with 4x4 MIMO and LAA

• Wi-Fi 6 (802.11ax) with 2x2 MIMO

• Bluetooth 5.0

• Ultra-Wideband chip for spatial awareness

• NFC with reader mode

• Express Cards with power reserve

Location

• Built-in GPS/GNSS

• Digital compass

• Wi-Fi

• Cellular

• iBeacon microlocation

FaceTime Video Calls

• FaceTime video calling over Wi-Fi or cellular

FaceTime Audio Calls

• FaceTime audio calling

• VoLTE support

Audio Playback

• Supported formats: AAC-LC, HE-AAC, HE-AAC v2, Protected AAC, MP3, Linear PCM, Apple Lossless, FLAC, Dolby Digital (AC-3), Dolby Digital Plus (E-AC-3), Dolby Atmos, and Audible formats

• Spatial audio playback

• User-configurable maximum volume

Video Playback

• Supported formats: HEVC, H.264, MPEG-4 Part 2, and Motion JPEG

• HDR with Dolby Vision and HDR10

• AirPlay mirroring and video/photo output to Apple TV (2nd generation or later)

• Video mirroring and video output: up to 1080p using Lightning Digital AV Adapter or Lightning to VGA Adapter (sold separately)

Siri

• Use your voice to send messages, set reminders, and more

• “Hey Siri” hands-free activation

• Use your voice to run shortcuts in favorite apps

Buttons and Connectors

• Volume control

• Ring/Silent switch

• Side button

• Built-in stereo speakers

• Lightning connector

• Built-in microphones

Power and Battery

• Up to 5 hours longer battery life than iPhone XS Max

• Video playback: Up to 20 hours

• Video streaming: Up to 12 hours

• Audio playback: Up to 80 hours

• 18W adapter included

• Built-in rechargeable lithium-ion battery

• Wireless charging (Qi compatible)

• Charging via USB to computer or power adapter

• Fast-charge capable: Up to 50% charge in 30 minutes with 18W adapter or higher

Sensors

• Face ID

• Barometer

• Three-axis gyroscope

• Accelerometer

• Proximity sensor

• Ambient light sensor

Operating System

• iOS 13
  Designed to protect your privacy with advanced features.
